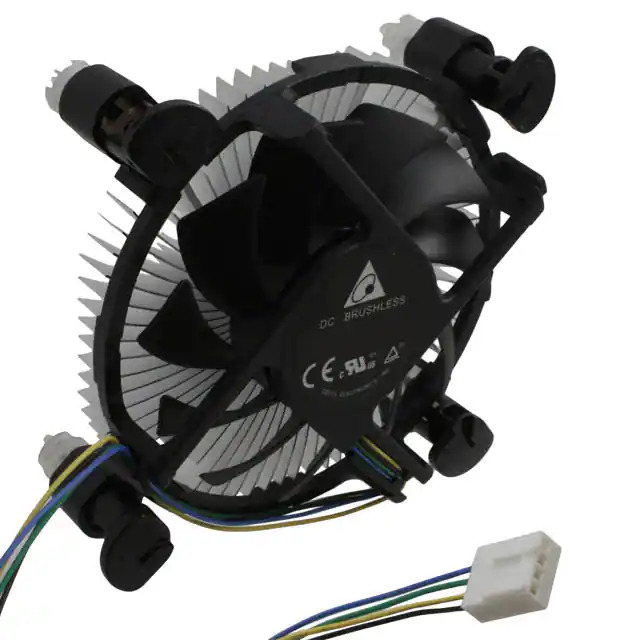

FHS-A9015S00 Delta Electronics
Same model may have multiple batches, images only for reference.

FHS-A9015S00

Part No FHS-A9015S00
Manufacturer Delta Electronics
Catalog Thermal - Heat Sinks
Description FAN CPU COOLER 90X30MM 12VDC / Heat Sink Intel LGA1156 & LGA1155 Cooler Aluminum, Plastic Board Level
Datasheet
FHS-A9015S00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Delta Electronics
Series FHS
Package Box
Product Status Not For New Designs
Type Board Level
Package Cooled Intel LGA1156 & LGA1155 Cooler
Attachment Method Bolt On
Shape Round
Length -
Width -
Diameter 3.543" (90.00mm) OD
Fin Height 1.181" (30.00mm)
Power Dissipation @ Temperature Rise -
Thermal Resistance @ Forced Air Flow -
Thermal Resistance @ Natural 0.52°C/W
Material Aluminum, Plastic
Material Finish -
Base Product Number FHS-A9015
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1354378-FHS-A9015S00
Ultra Librarian 3D Model Ultra Librarian FHS-A9015S00 CAD Model

Description

The FHS-A9015S00 is a thermal heat sink from Delta Electronics.

  • Application: Board Level
  • Compatibility: Intel LGA1156 and LGA1155 Coolers
  • Material: Aluminum and Plastic
  • Shape: Round
  • Diameter: 90.00mm
  • Fin Height: 30.00mm
  • Thermal Resistance @ Natural Flow: 0.52°C/W
  • Lifecycle Status: Not For New Designs
  • Product Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Attachment Method: Bolt-On
