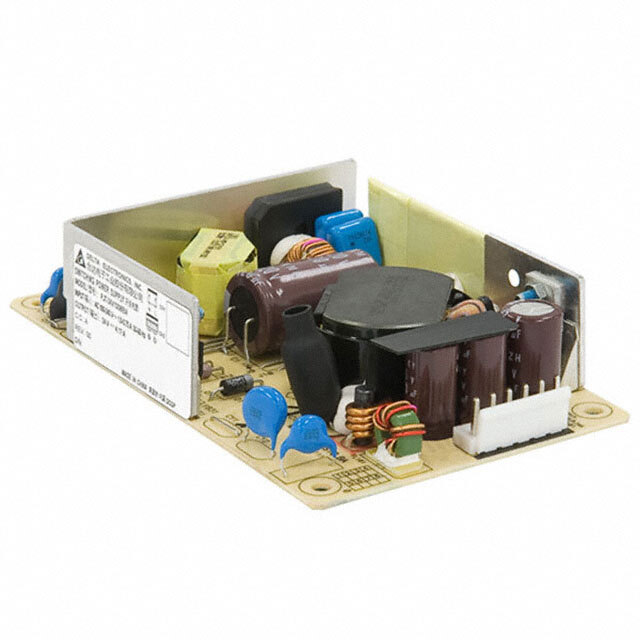

Same model may have multiple batches, images only for reference.
PMC-24V100W1AA Delta Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMC-24V100W1AA

Part No PMC-24V100W1AA
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 100W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 4.17 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm)
Approval Agency CB, CCC, CE, cURus, Nemko
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1544198-PMC-24V100W1AA
Ultra Librarian 3D Model Ultra Librarian PMC-24V100W1AA CAD Model
