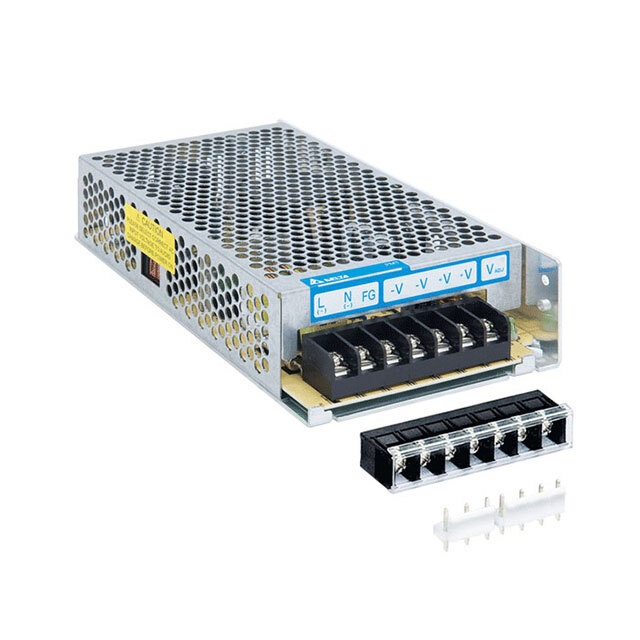

PMT-D1V100W1AA Delta Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMT-D1V100W1AA

Part No PMT-D1V100W1AA
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 12V 5V 100W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Not For New Designs
Type Enclosed
Number of Outputs 2
Voltage - Input 88 ~ 132 VAC, 176 ~ 264 VAC
Voltage - Output 1 12V
Voltage - Output 2 5V
Current - Output 1 7 A
Current - Output 2 3 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 82%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output
Mounting Type Chassis Mount
Size / Dimension 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm)
Approval Agency CB, CCC, CE, cURus, TUVgs
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1544211-PMT-D1V100W1AA
Ultra Librarian 3D Model Ultra Librarian PMT-D1V100W1AA CAD Model
