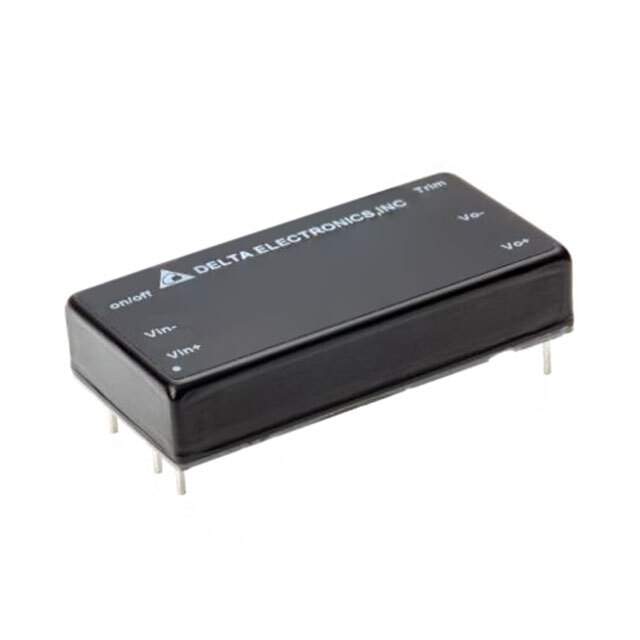

Same model may have multiple batches, images only for reference.

S24SP15003PDFA

Name: S24SP15003PDFA
Brand: Delta Electronics
SKU: 1237520
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S24SP15003PDFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 40W / Isolated Module DC DC Converter 1 Output 15V 2.7A 9V - 36V Input
Datasheet	S24SP15003PDFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	S24SP (40W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	2.7A
Power (Watts)	40 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93.7%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
Control Features	Enable, Active High
Base Product Number	S24SP
Other Names	941-1756
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237520-S24SP15003PDFA
Ultra Librarian 3D Model	Ultra Librarian S24SP15003PDFA CAD Model

Alternative Products

Description

{"Intro":"

The Delta Electronics S24SP (40W) DC DC Converter is an isolated module with a remote on/off feature.

","Specifications":"

Features: Over-current protection, over-temperature protection, over-voltage protection, and short-circuit protection
Power Output: 40 W
Efficiency: 93.7%
Mounting Type: Through-hole
Package/Case: 6-DIP module
Temperature Range: -40°C to 85°C
Voltage Isolation: 1.5 kV
Applications: ITE (Commercial)
