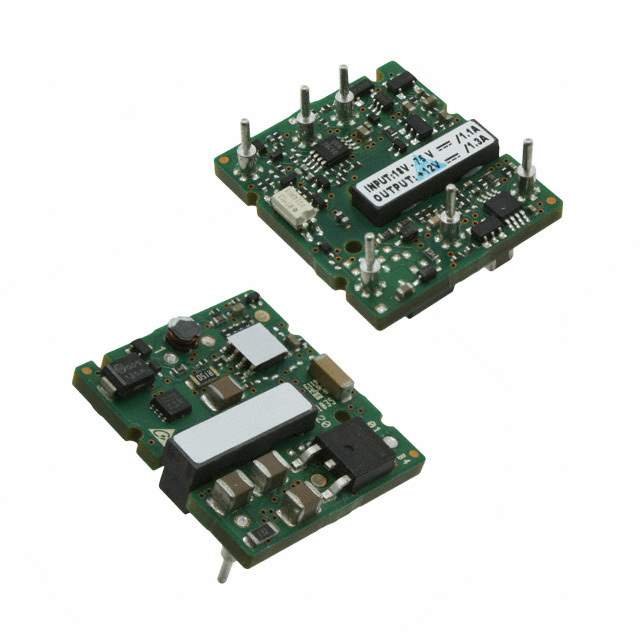

Same model may have multiple batches, images only for reference.

S36SE12002PRFZ

Name: S36SE12002PRFZ
Brand: Delta Electronics
SKU: 1237551
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S36SE12002PRFZ
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 25W / Isolated Module DC DC Converter 1 Output 12V 2A 36V - 75V Input
Datasheet	S36SE12002PRFZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	Delphi S36SE (25W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	2A
Power (Watts)	25 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 123°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Control Features	Enable, Active High
Base Product Number	S36SE
Other Names	941-1026
Standard Package	36
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237551-S36SE12002PRFZ
Ultra Librarian 3D Model	Ultra Librarian S36SE12002PRFZ CAD Model

Alternative Products

Description

The 1237551-S36SE12002PRFZ is a DC-DC converter from the Delphi S36SE series manufactured by Delta Electronics.

Type: Isolated module
Power Output (Max): 25W
Features: Remote on/off, overcurrent protection, over temperature protection, overvoltage protection, and undervoltage lockout
Application: Commercial applications
