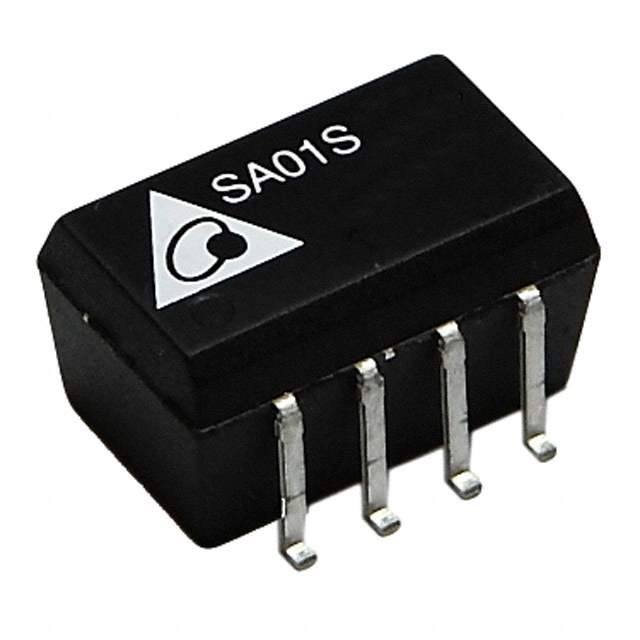

Same model may have multiple batches, images only for reference.

SA01S1203A

Name: SA01S1203A
Brand: Delta Electronics
SKU: 1237506
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA01S1203A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 300mA 10.8V - 13.2V Input
Datasheet	SA01S1203A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	3.3V
Current - Output (Max)	300mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	75%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01S
Other Names	941-1240
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237506-SA01S1203A
Ultra Librarian 3D Model	Ultra Librarian SA01S1203A CAD Model

Alternative Products

Description

The Delta Electronics SA01S (1W) is an isolated module DC-DC converter that comes in a tube package and is designed for medical applications.

Voltage Isolation: 1 kV
Efficiency: 75%
Maximum Output Current: 300mA
Input Voltage Range: 10.8V to 13.2V
Output Voltage: 3.3V
Outputs: only one output
Features: SCP features
Mounting: SMD (SMT) technology
Temperature Range for Operation: -40°C to 85°C
Dimensions: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
MSL Level: 3 (168 hours)
REACH Status: unaffected
HTSUS code: 8504.40.9580
Manufacturer Part Number: 1237506-SA01S1203A
Base Product Number: SA01S
