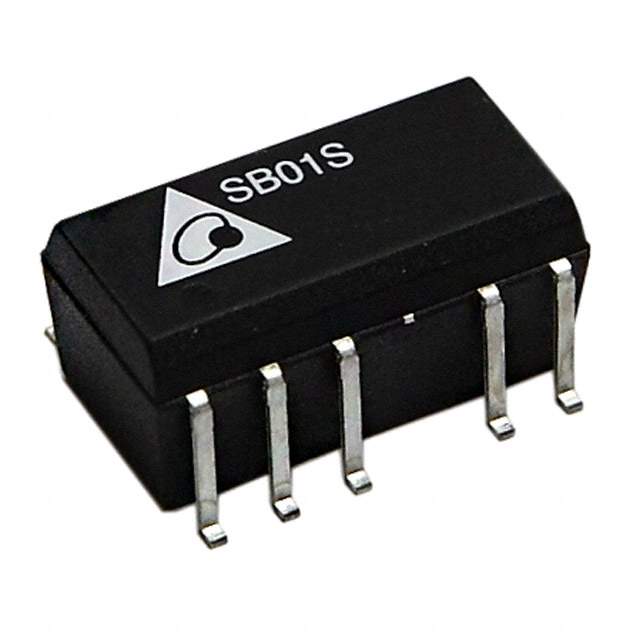

SB01D2405A

Get a Quote

Part No	SB01D2405A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input
Datasheet	SB01D2405A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SB01S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting	SMD (SMT)
Package / Case	12-SMD Module, 10 Leads
Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number	SB01D
Other Names	941-1277
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237484-SB01D2405A
Ultra Librarian 3D Model	Ultra Librarian SB01D2405A CAD Model

Alternative Products

Description

The Delta Electronics SB01D2405A is a power supply module that is part of the SB01S/D (2W) series.

Type: isolated module
Features: SCP features
Packaged: in a tube
Applications: in the medical industry
Leads: 10 leads
Package/Case: a 12-SMD module
Standard Package: 10
Voltage Isolation: 3 kV
Number of Outputs: 2
Maximum Output Current: 100mA for each output
Voltage Input Range: 21.6V to 26.4V
Voltage Output for Output 1: 5V
Voltage Output for Output 2: -5V
Efficiency: 72 percent
Temperature Range for Operation: -40°C to 85°C
