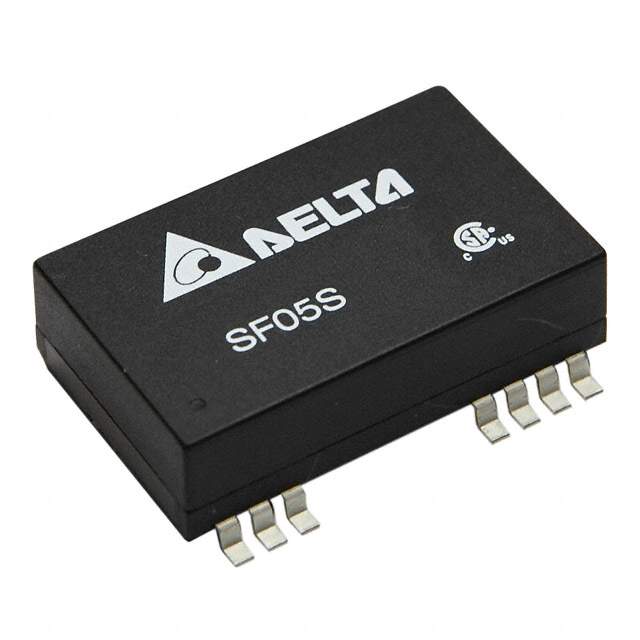

SF05D1215A Real Image
Same model may have multiple batches, images only for reference.

SF05D1215A

Part No SF05D1215A
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 5W  /  Isolated Module DC DC Converter 2 Output 15V -15V 167mA, 167mA 9V - 18V Input
Datasheet
SF05D1215A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series SF05S/D (5W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 167mA, 167mA
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications Medical
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 71°C
Efficiency 83%
Mounting SMD (SMT)
Package / Case 24-SMD Module, 12 Leads
Dimension 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features Enable, Active High
Base Product Number SF05D
Other Names 941-1376
Standard Package 10
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237425-SF05D1215A
Ultra Librarian 3D Model Ultra Librarian SF05D1215A CAD Model

Description

The Delta Electronics SF05D1215A is a DC-DC converter with a 5W power rating.

  • Voltage Isolation: 1.5 kV
  • Outputs: two outputs with a maximum current output of 167mA each
  • Voltage Input Range: 9V to 18V
  • Voltage Output: 15V and -15V
  • Application: medical applications
  • Package: 24-SMD module, 12 leads package
  • Dimension: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
  • Mounting Style: SMD (SMT) mounting style
  • Temperature Range: -40°C to 71°C
  • Approvals: CB Scheme, CE, EAC, EN, SIQ, and UL
