Same model may have multiple batches, images only for reference.

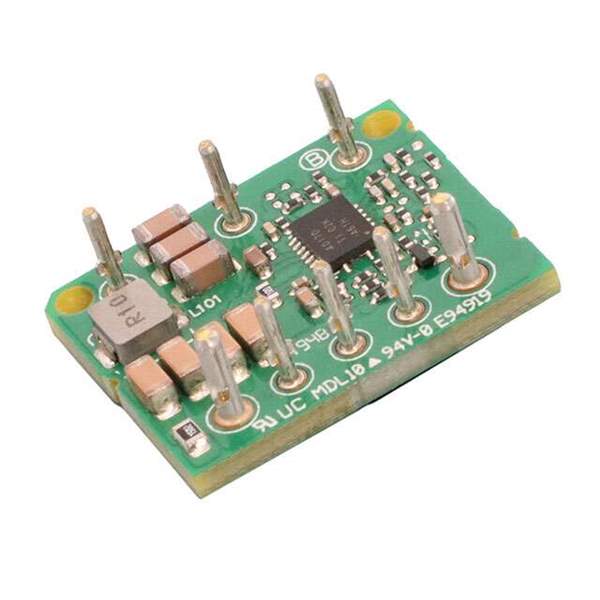

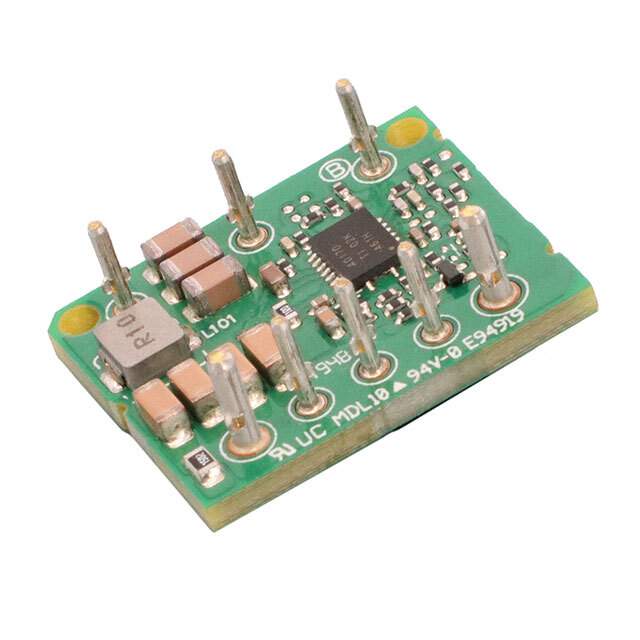

T31SN24005NNFA Real Image
Same model may have multiple batches, images only for reference.

T31SN24005NNFA

Part No T31SN24005NNFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5-30V 100W / Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 30V 4.5A 9V - 53V Input
Datasheet
T31SN24005NNFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Delta Electronics
Series T31SN24005 (100W)
Package Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 53V
Voltage - Output 1 5 ~ 30V
Current - Output (Max) 4.5A
Power (Watts) 100 W
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 96.5%
Mounting Type Through Hole
Package / Case Module
Size / Dimension 0.92" L x 0.75" W x 0.38" H (23.4mm x 19.1mm x 9.6mm)
Supplier Device Package Thirty-Second Brick
Control Features Enable, Active Low
Base Product Number T31SN
Standard Package 70
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338974-T31SN24005NNFA
Ultra Librarian 3D Model Ultra Librarian T31SN24005NNFA CAD Model

Description

The T31SN24005 (100W) Non-Isolated PoL Module is a power supply module that is designed for ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Features: Adjustable Output, Remote On/Off, and Remote Sense
  • Package Size: 0.92" L x 0.75" W x 0.38" H (23.4mm x 19.1mm x 9.6mm)
  • Package: Tray
  • Power Output: 100 W
  • Current Output: 4.5A
  • Efficiency: 96.5%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Control Feature: Enable, Active Low
  • Output Voltage: 5 ~ 30V
  • Mounting Type: Through Hole
  • Application: DC DC Converters
