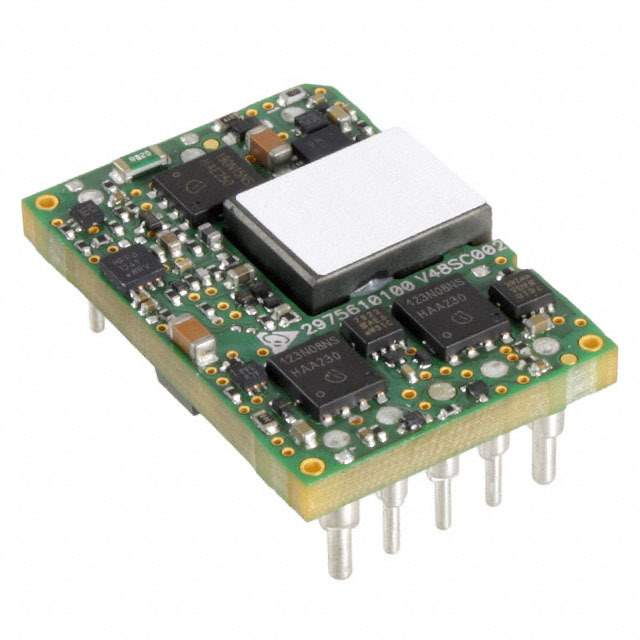

V48SR1R825NNFA Real Image
Same model may have multiple batches, images only for reference.

V48SR1R825NNFA

Part No V48SR1R825NNFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.8V 66W / Isolated Module DC DC Converter 1 Output 1.8V 25A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi V48SR (66W)
Package Tray
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 1.8V
Current - Output (Max) 25A
Power (Watts) 66 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 127°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Dimension 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm)
Control Features Enable, Active Low
Base Product Number V48SR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 35
Win Source Part Number 1225166-V48SR1R825NNFA
Ultra Librarian 3D Model Ultra Librarian V48SR1R825NNFA CAD Model

Description

The Delphi V48SR (66W) is an isolated module power supply with a remote On/Off feature.

  • Features: Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Under Voltage Lockout (UVLO)
  • Application: ITE (Commercial)
  • Power Output: 66W
  • Maximum Output Current: 25A
  • Efficiency: 87%
  • Input Voltage: 36V to 75V
  • Output Voltage: 1.8V
  • Mounting Type: Through-Hole
  • Package/Case: 8-DIP Module, 1/16 brick
  • Operating Temperature: -40°C to 127°C
  • Dimensions: 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm)
  • Manufacturer: Delta Electronics
