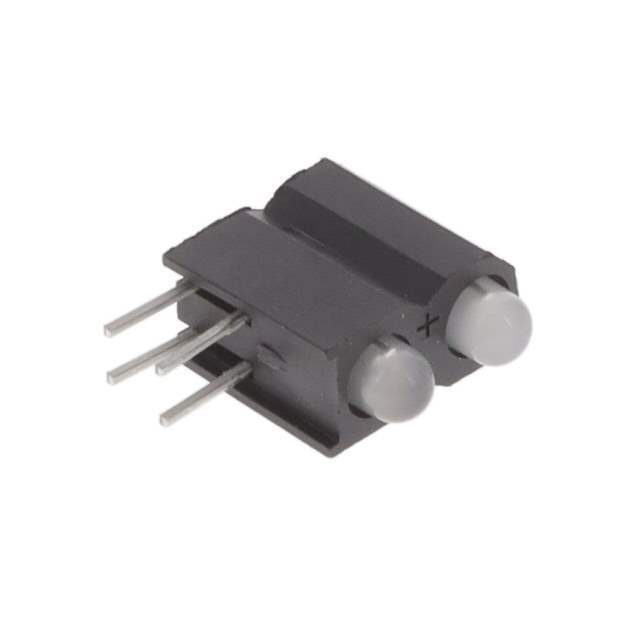

Same model may have multiple batches, images only for reference.
5530714300F Dialight
Same model may have multiple batches, images only for reference.

5530714300F

Part No 5530714300F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 3MM BI-LVL GRN/RED/YL RA
Datasheet
5530714300F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Dialight
Packaging Bulk
Part Status Active
Color Green, Red (x 1), Green, Yellow (x 1)
Wavelength - Peak 565nm, 635nm, 585nm
Configuration 2 High
Millicandela Rating 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow
Lens Style Round with Domed Top
Lens Size 3.00mm Dia
Voltage Rating 2.1V Green, 2V Red, 2.1V Yellow
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 5530714300F CAD Model

Description

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 1), Green, Yellow (x 1) 2.1V Green, 2V Red, 2.1V Yellow Round with Domed Top 3.00mm Dia Through Hole, Right Angle
