Product Overview: 74LVC1G125Z-7 by Diodes Incorporated

The 74LVC1G125Z-7 is a high-performance, single-bit buffer/line driver with 3-state output from Diodes Incorporated, designed to operate from a 1.65V to 5.5V VCC supply. This component is part of the 74LVC family, which is known for its low-voltage operation and low power consumption, making it an excellent choice for battery-operated and power-sensitive applications.

This buffer/line driver features a high-impedance output state during power-up and power-down, which prevents unintended driving of the bus before the supply is established. Its 3-state output allows for connection to a bus-organized system, and it can be used to support isolation, as the output can be effectively disconnected from the circuit by placing it into the high-impedance state.

Key Features

• Wide Supply Voltage Range: Operates across a voltage range of 1.65V to 5.5V, making the device compatible with a variety of logic levels and suitable for interfacing with both 3.3V and 5V systems.
• High-Speed Operation: With a typical propagation delay of only a few nanoseconds, the 74LVC1G125Z-7 ensures fast signal transmission, which is crucial for high-speed data processing and communication systems.
• Low Power Consumption: Its low-power characteristics are ideal for use in portable and battery-powered devices, where power efficiency is critical.
• 3-State Outputs: The inclusion of 3-state outputs provides the flexibility to connect multiple devices to a common bus line without interference, as long as only one device is enabled at a time.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built into the device, ensuring robustness and reliability in harsh environments.
• Lead-Free and RoHS Compliant: The 74LVC1G125Z-7 is environmentally friendly, complying with RoHS standards, which restricts the use of certain hazardous substances in electronic equipment.

Applications

The versatile nature of the 74LVC1G125Z-7 makes it suitable for a broad range of applications, including:

• Bus driving in computers and computer peripherals
• Signal buffering in telecommunications
• Level shifting in multi-voltage systems
• Memory address driving
• Isolation of circuit blocks within complex integrated circuits

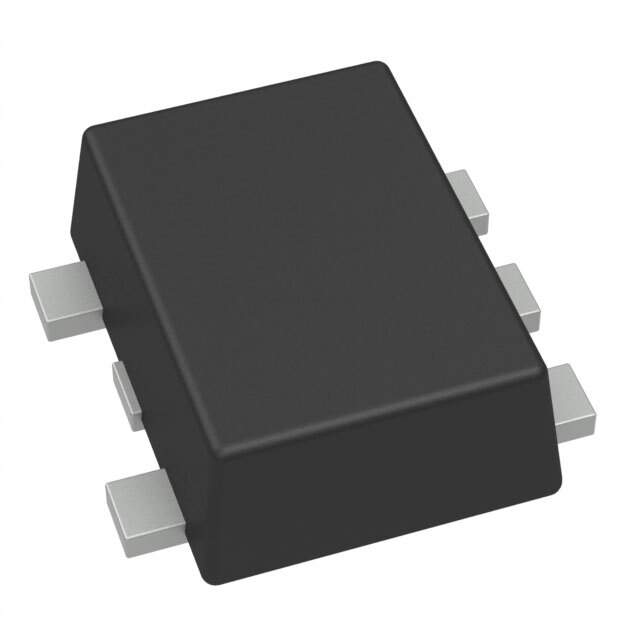

With its compact SOT-553 package, the 74LVC1G125Z-7 is designed for optimized board space usage, which is particularly beneficial in space-constrained applications. Its performance and versatility make it a valuable component in any designer's toolkit for modern electronic designs.
