Product Overview: 74LVC2G34FX4-7

The 74LVC2G34FX4-7 is a high-performance, dual buffer gate integrated circuit designed and manufactured by Diodes Incorporated. This product is part of the 74LVC family, which is well-known for its low-voltage operation and compatibility with 3.3V and 5V systems. The 74LVC2G34FX4-7 offers a compact, power-efficient solution for a wide range of buffering applications in modern digital electronics.

Key Features

• Logic Type: Dual Buffer Gate
• Supply Voltage Range: 1.65V to 5.5V, allowing for use in various applications from low-voltage portable devices to standard 5V logic circuits.
• High-Speed Operation: With a propagation delay of just a few nanoseconds, it is suitable for high-speed signal processing applications.
• Low Power Consumption: The device features a low static power consumption, making it ideal for battery-operated devices.
• Output Drive Capability: Capable of driving up to 24mA at the output, ensuring strong signal transmission to downstream components.
• Operating Temperature Range: -40°C to +125°C, providing reliable performance across a wide range of environmental conditions.

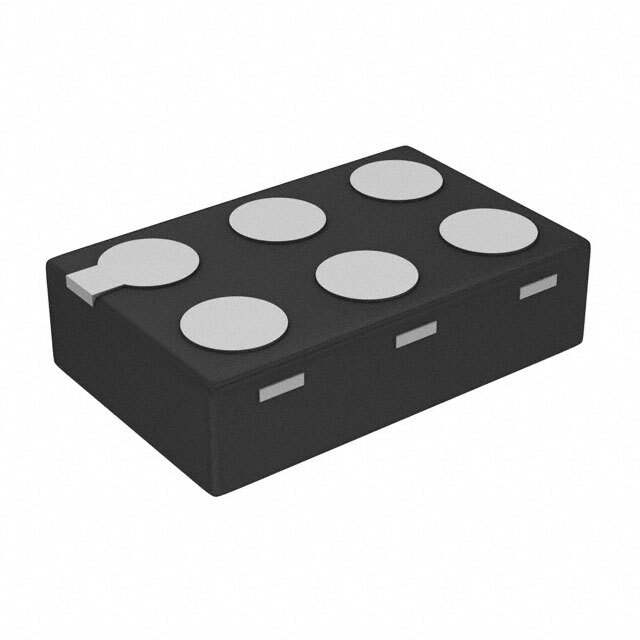

• Package: Comes in a small X2-DFN1410-6 (Type B) package, which is suitable for space-constrained applications.

Applications

The 74LVC2G34FX4-7 is versatile and can be used in various digital systems, including:

• Signal buffering and isolation
• Logic level translation
• Line driving
• Bus interface circuits
• Clock distribution networks
• Portable and battery-operated devices

Quality and Reliability

Diodes Incorporated ensures that the 74LVC2G34FX4-7 meets stringent quality standards. The device is subjected to rigorous testing and verification processes to guarantee its performance and reliability in a range of conditions. The robust design ensures that the 74LVC2G34FX4-7 will perform consistently, making it a dependable choice for critical applications where failure is not an option.

Environmental Compliance

The 74LVC2G34FX4-7 is compliant with RoHS and Green standards, reflecting Diodes Incorporated's commitment to environmental sustainability. Customers can be assured of a product that not only meets high-performance standards but also contributes to a greener future.
