The AL5802LP4-7 is a robust linear LED driver designed to deliver exceptional performance for a wide range of lighting applications. Manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors, this driver is engineered to provide a simple and cost-effective solution for driving LED lamps and strips.

Key Features

• Simplified Design: The AL5802LP4-7 simplifies the LED driving circuit by integrating a power transistor, thus reducing external component count.
• Constant Current Output: It provides a precise constant current output, which can be set with just one external resistor, ensuring consistent brightness and color uniformity across LEDs.
• High Efficiency: With its low headroom voltage, the device operates with high efficiency, making it suitable for battery-powered applications.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, enhancing its reliability and lifespan.
• Wide Operating Voltage Range: It supports a wide input voltage range, accommodating various power supplies and allowing flexibility in design.

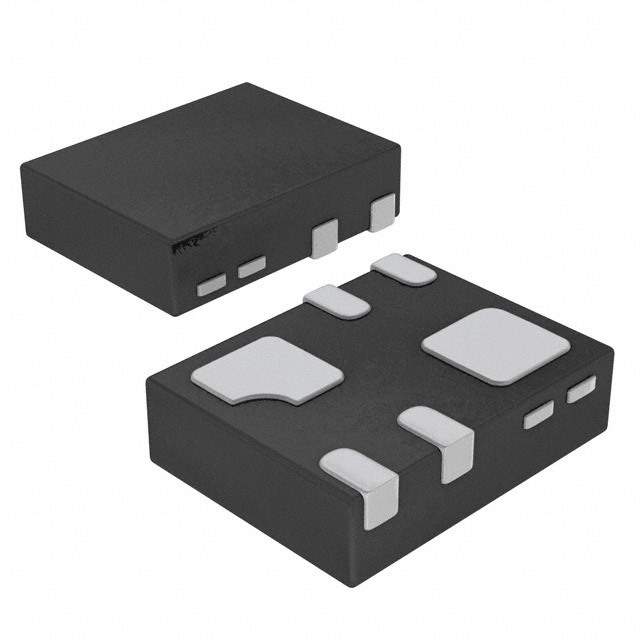

• Package: The AL5802LP4-7 comes in a small footprint 4-pin package, which is ideal for space-constrained applications.

Applications

The AL5802LP4-7 is well-suited for a variety of lighting applications, including:

• LED lamps and bulbs
• LED backlighting for LCD TVs and monitors
• Architectural and decorative LED lighting
• Emergency lighting
• Signage and advertising LED modules

Product Specifications

For designers looking for a reliable, easy-to-use linear LED driver, the AL5802LP4-7 from Diodes Incorporated offers an excellent balance of performance, efficiency, and versatility.
