The AP1501A-50T5G-U is a state-of-the-art DC-DC step-down (buck) converter offered by Diodes Incorporated, a leading manufacturer in the semiconductor market. This versatile and efficient component is designed to meet the rigorous power conversion requirements of modern electronic devices.

Key Features

• Output Voltage: The device provides a fixed output voltage of 5V, which is ideal for powering standard logic circuits and multiple digital devices.
• High Efficiency: With its advanced design, the AP1501A-50T5G-U achieves high efficiency, which minimizes energy loss and heat generation, enhancing the reliability and longevity of the end product.
• Adjustable Output: Users can adjust the output voltage from 5V to as low as 1.23V by using external resistors, offering great flexibility for different applications.
• Output Current: This converter can deliver up to 3A of continuous output current, making it capable of driving a wide range of loads.
• Wide Input Voltage Range: It operates over a broad input voltage range from 4.5V to 40V, accommodating various power sources and fluctuating input conditions.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, thus ensuring safe operation under high load conditions.
• Frequency Operation: The AP1501A-50T5G-U operates at a frequency of 150kHz, which allows for smaller size external components, resulting in a compact power supply design.

Applications

The AP1501A-50T5G-U is suitable for a wide range of applications, including but not limited to:

• Consumer Electronics
• Telecommunications
• Computer Peripherals
• Networking Systems
• Industrial Equipment

Package and Quality

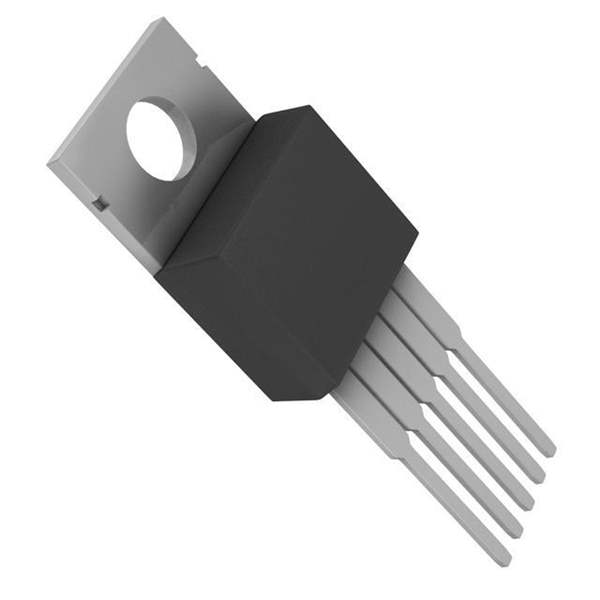

Encased in a TO-220-5 package, the AP1501A-50T5G-U is designed for easy integration into various circuit designs. Diodes Incorporated ensures that each device meets rigorous quality standards, providing reliable and consistent performance for your power supply solutions.
