Diodes Incorporated AP1506-K5G-13 Buck Converter

The AP1506-K5G-13 from Diodes Incorporated is a high-performance, adjustable and fixed voltage, 3A step-down (buck) switching voltage regulator. It is designed to provide a cost-effective solution for applications requiring a regulated output voltage with low power loss and high efficiency. This device is ideal for a variety of systems, including but not limited to consumer electronics, office equipment, and telecommunications.

Key Features

• Output Voltage: The AP1506-K5G-13 offers an adjustable output voltage range from 1.23V to 37V, which can cater to a wide array of voltage requirements for different applications.
• High Efficiency: With efficiencies up to 85%, this buck converter minimizes heat generation and energy loss, making it suitable for energy-sensitive designs.
• Current Capacity: The device can deliver up to 3A of continuous output current, ensuring sufficient power for demanding loads.
• Thermal Protection: It includes built-in thermal shutdown and current limit features, providing reliable protection against excessive temperature and overcurrent conditions.
• Frequency: The switching frequency of 150KHz facilitates the use of smaller external components, reducing the overall footprint and cost of the power supply design.

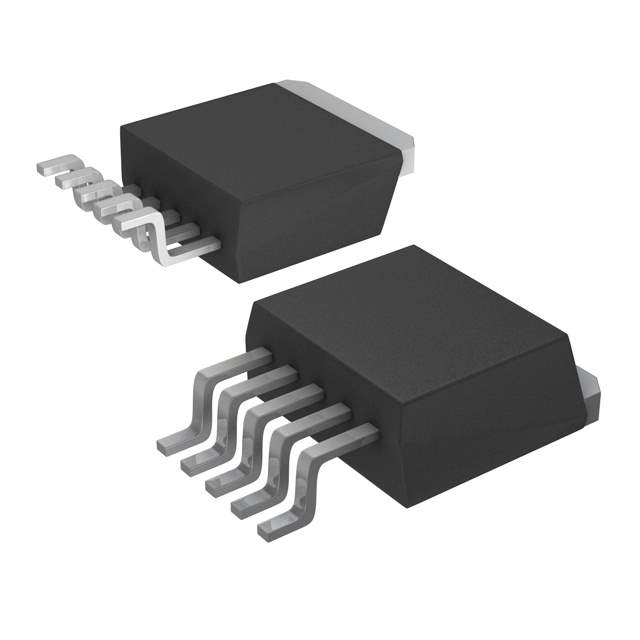

• Standard Package: The AP1506-K5G-13 comes in a TO-263-5 package, which is widely used in the industry and ensures compatibility with various PCB layouts.

Applications

The versatility of the AP1506-K5G-13 makes it a perfect choice for a broad range of applications. It is particularly useful in:

• Power supplies for computer peripherals such as printers and monitors
• Pre-regulator for linear regulators
• DC-DC converters for distributed power supply systems
• Graphic cards and televisions

The AP1506-K5G-13's combination of features and performance ensures that it meets the rigorous demands of modern electronic devices, providing a reliable and efficient power management solution. Its ease of use, complemented by comprehensive protection features, makes it a go-to choice for designers looking to enhance the performance and longevity of their products.
