Diodes Incorporated AP1507-33D5L-13 Product Overview

The AP1507-33D5L-13 is a high-performance, adjustable and fixed voltage regulator designed by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This device is specifically engineered to provide a stable and reliable power supply for a wide range of applications, including consumer electronics, computer peripherals, and industrial equipment.

Key Features

• Output Voltage: The AP1507-33D5L-13 delivers a fixed output voltage of 3.3V, which is ideal for powering low-voltage logic devices and microcontrollers.
• High Efficiency: With its integrated pulse-width modulation (PWM) control circuit, this regulator offers high efficiency, which is crucial for minimizing heat generation and power loss in electronic systems.
• Output Current: It can deliver up to 3A of continuous output current, making it suitable for applications that require a robust power supply.
• Thermal Protection: The device includes built-in thermal protection features that automatically shut down the regulator in the event of excessive temperature rise, ensuring the safety and longevity of both the regulator and the system it powers.
• Adjustable Output: For applications that require a custom voltage level, the AP1507-33D5L-13 also allows for an adjustable output configuration, providing design flexibility.
• Wide Input Voltage Range: It supports a broad input voltage range, accommodating various power sources and enabling versatile usage across different platforms.

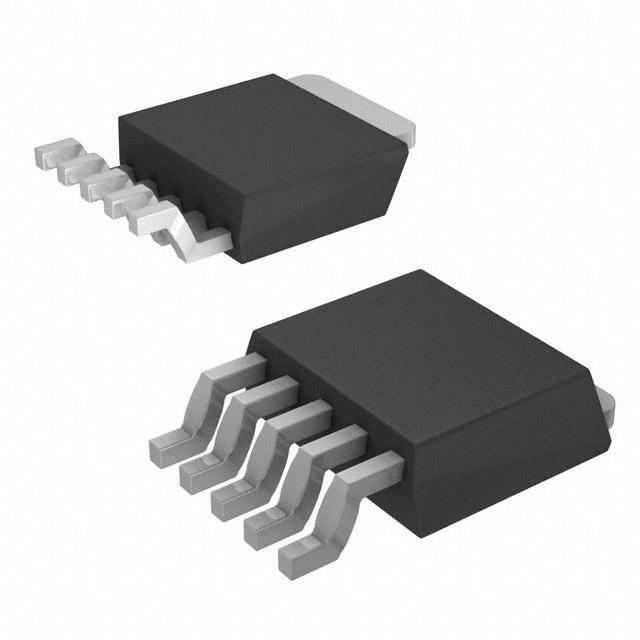

• Package: The device is available in a TO-263-5L package, which offers a compact footprint for space-constrained applications while allowing for efficient heat dissipation.

Applications

The versatility of the AP1507-33D5L-13 voltage regulator makes it an excellent choice for a multitude of electronic applications. Its robust design is particularly well-suited for:

• Power supplies for personal computers and laptops
• Networking equipment such as routers and switches
• Office automation machines like printers and scanners
• Telecommunication devices
• Consumer electronics including gaming consoles and televisions

With its combination of high efficiency, thermal protection, and a wide input voltage range, the AP1507-33D5L-13 from Diodes Incorporated stands out as a reliable and versatile component for your power regulation needs.
