Product Overview: AP3417CKTR-G1

The AP3417CKTR-G1 is a state-of-the-art, high-efficiency, synchronous, step-down DC-DC converter designed and manufactured by Diodes Incorporated. This compact and robust power solution is engineered to deliver a continuous output current of up to 1A, making it suitable for a wide range of applications including portable devices, wireless peripherals, and IoT products.

With an input voltage range of 2.7V to 5.5V, the AP3417CKTR-G1 is versatile enough to be powered by various sources, including single-cell lithium-ion batteries, USB ports, and multi-cell batteries. The device operates at a fixed switching frequency of 1.4MHz, enabling the use of small surface-mount inductors and capacitors, which minimizes the overall footprint and design complexity on the PCB.

The efficiency of the AP3417CKTR-G1 is further enhanced by its synchronous rectification topology, which eliminates the need for an external Schottky diode and reduces power loss during the conversion process. This contributes to its high efficiency, which can reach up to 92%, ensuring minimal heat generation and extended battery life in portable applications.

Additionally, the converter features a range of protective functions that ensure the safety and reliability of the end product. These include over-current protection (OCP), under-voltage lockout (UVLO), thermal shutdown, and output short-circuit protection. The device also supports a low-power mode that significantly reduces quiescent current, further conserving battery life when the load is light or in standby.

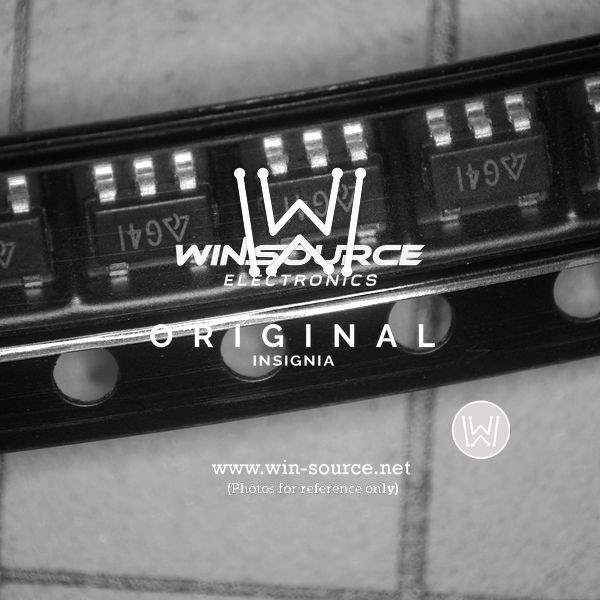

The AP3417CKTR-G1 comes in a compact TSOT25 package, making it an excellent choice for space-constrained applications. Its advanced features and high performance make it an ideal power management solution for designers looking to balance efficiency, size, and cost in their next-generation electronic devices.

Diodes Incorporated's commitment to quality ensures that the AP3417CKTR-G1 meets the highest industry standards for performance and reliability, providing a trusted option for engineers and product developers worldwide.
