Diodes Incorporated AP3502MTR-G1 Overview

The AP3502MTR-G1 is a high-performance, pulse-width modulation (PWM) integrated circuit designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This product is specifically engineered to provide a cost-effective solution for power management and conversion applications.

At the heart of the AP3502MTR-G1 is its ability to drive a high-efficiency synchronous rectified step-down (buck) converter, which is suitable for various applications, including set-top boxes, DVDs, TVs, and other low-power electrical devices. The device operates at a 340kHz switching frequency, enabling the use of smaller external components, which translates to a reduction in overall board space and system costs.

Key Features of AP3502MTR-G1

• High Efficiency: The synchronous rectification design boosts efficiency, which is critical for energy-sensitive applications.
• Programmable Soft Start: This feature minimizes inrush current during startup, providing protection and stability to the power system.
• Under-Voltage Lockout (UVLO): It ensures that the device only operates when the input voltage is within a safe range, protecting the circuit from low-voltage conditions.
• Over-Temperature Protection: The built-in thermal shutdown function safeguards the device from overheating, enhancing reliability and longevity.
• Adjustable Output Voltage: Flexibility to set the output voltage as per the requirement of the application.
• Compact Size: Available in a small-footprint package, it is ideal for space-constrained applications.

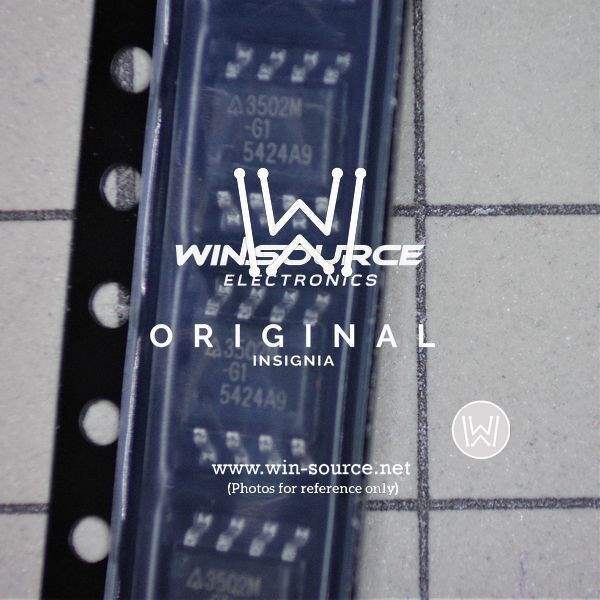

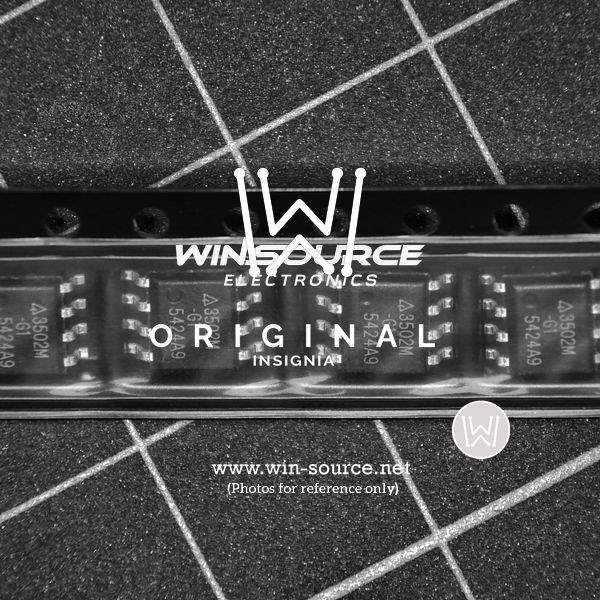

The AP3502MTR-G1 is available in a RoHS-compliant SOP-8 package, which is environmentally friendly and suitable for automated assembly processes. Its high level of integration and features are designed to simplify circuit design and minimize the number of external components required, which reduces both system complexity and cost.

With its robust feature set and Diodes Incorporated's reputation for quality, the AP3502MTR-G1 is an excellent choice for designers looking to enhance power efficiency and reliability in their next project.
