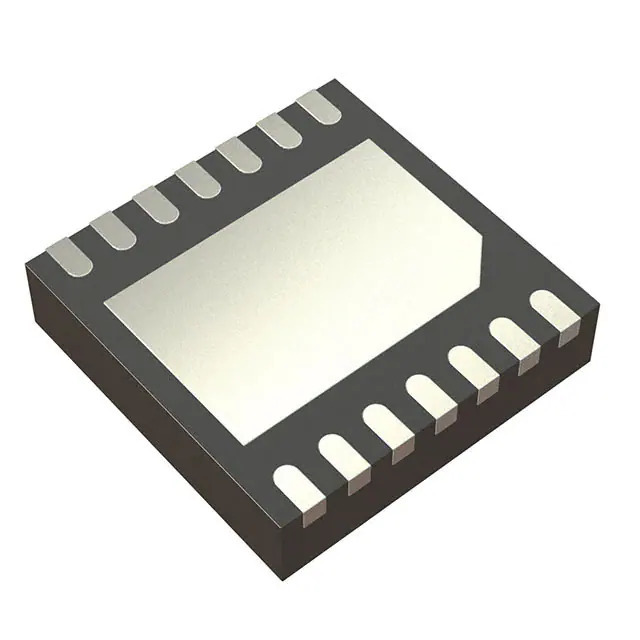

Overview of Product AP43771FBZ-13

The AP43771FBZ-13 is a cutting-edge USB Type-C power delivery (PD) controller designed and manufactured by Diodes Incorporated, a leading global provider of high-quality semiconductor products. This advanced controller is engineered to facilitate the implementation of USB PD power conversion in a wide array of electronic devices, ensuring compatibility with the latest USB-C specifications.

Key Features

• USB Type-C and USB PD 3.0 Compliance: The AP43771FBZ-13 adheres to the latest USB-C and USB Power Delivery (PD) 3.0 standards, providing fast and efficient charging capabilities.
• Programmable Power Supply (PPS) Support: This feature allows for fine-grained control over the output voltage and current, enabling the device to deliver power more precisely according to the connected device's requirements.
• Integrated VCONN Power Switch: The product includes a built-in switch to supply VCONN power for electronically marked cables, simplifying the design and reducing external component requirements.
• BMC Communication Capability: Utilizing Biphase Mark Coded (BMC) signaling, the AP43771FBZ-13 can communicate over the CC (communication channel) wire in a USB-C cable, enabling intelligent power management.

Applications

The versatility of the AP43771FBZ-13 makes it suitable for a broad range of applications. It is ideal for use in:

• Wall Chargers
• Power Adapters
• Battery Chargers
• Car Chargers
• Portable Power Banks
• USB PD Docking Stations

Technical Specifications

With a wide operating voltage range and a comprehensive protection suite, the AP43771FBZ-13 ensures safe and reliable operation. Its technical specifications include over-voltage, over-current, and over-temperature protections, which safeguard the device and the connected equipment from potential damage. The controller's small form factor package enables designers to develop compact and efficient power solutions.

Conclusion

The AP43771FBZ-13 from Diodes Incorporated represents a significant advancement in USB PD controller technology, offering a combination of performance, efficiency, and versatility that is well-suited for today's fast-paced, technology-driven market. Whether for personal electronics or industrial applications, this controller is designed to meet the rigorous demands of modern USB-C power delivery.
