The AZ1117D-3.3TRE1 is a high-performance low-dropout (LDO) regulator from Diodes Incorporated, designed to deliver a continuous 3.3V output voltage with a dropout voltage of just 1.15V at a full load of up to 1A. This regulator is part of the AZ1117 series, known for their reliability and efficiency in a wide range of applications.

With its ability to maintain a stable output voltage despite variations in input voltage and load conditions, the AZ1117D-3.3TRE1 is an ideal choice for sensitive electronic devices that require a consistent power supply. Its low dropout voltage means that it can operate effectively even when the input voltage is very close to the output voltage, enhancing the overall efficiency of the system it is used in.

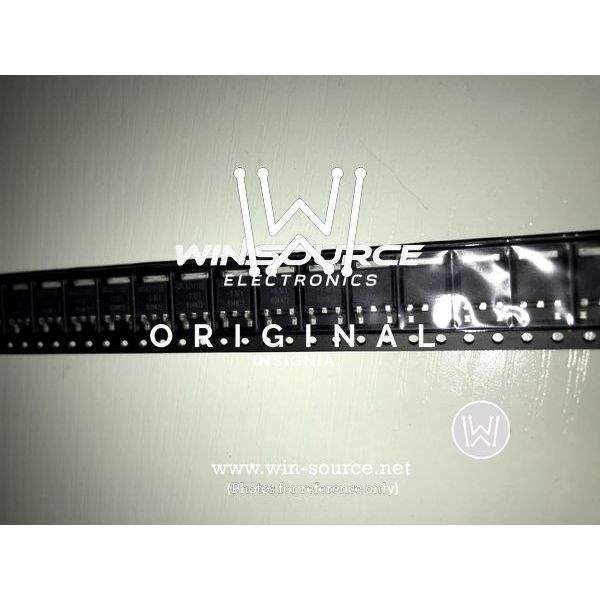

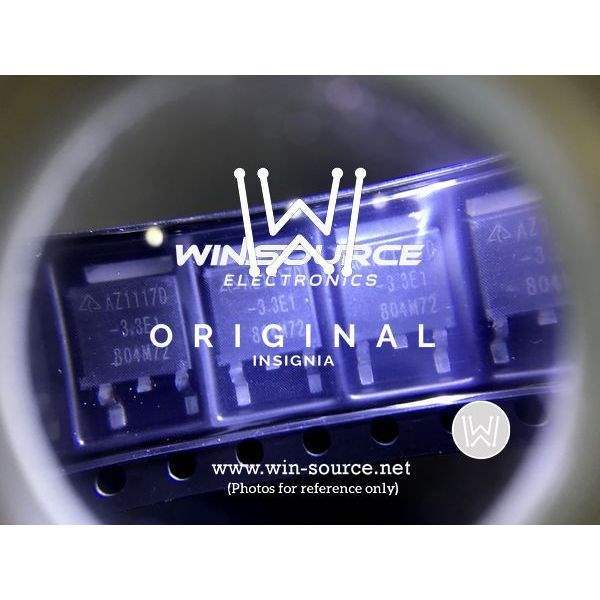

The AZ1117D-3.3TRE1 comes in a robust TO-252 (DPAK) package, which ensures a compact footprint while allowing for adequate heat dissipation. This makes it suitable for space-constrained applications while still providing the thermal performance required for reliable operation.

Key features of the AZ1117D-3.3TRE1 include:

• Output Voltage: 3.3V
• Output Current: Up to 1A
• Dropout Voltage: 1.15V at 1A load
• Package Type: TO-252 (DPAK)
• Overcurrent and thermal protection
• Low ground current
• High accuracy output voltage

This LDO regulator also incorporates several safety features, such as overcurrent protection and thermal shutdown, to ensure the protection of both the device and the system it powers. The low ground current characteristic minimizes the standby power consumption, making the AZ1117D-3.3TRE1 an energy-efficient solution for battery-powered devices.

Whether you are designing power supplies for consumer electronics, portable devices, or industrial equipment, the AZ1117D-3.3TRE1 from Diodes Incorporated offers a reliable and efficient voltage regulation solution that can help to enhance the performance and longevity of your products.
