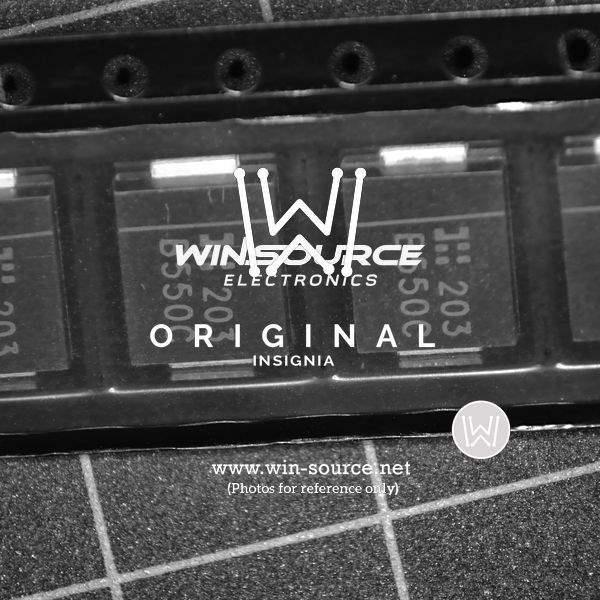

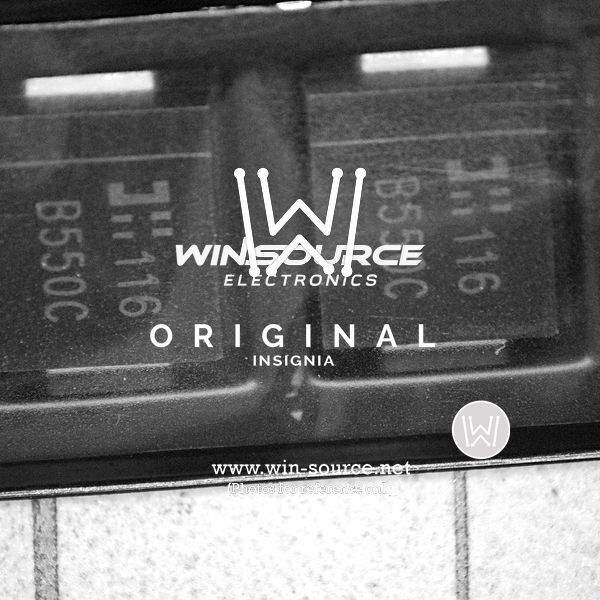

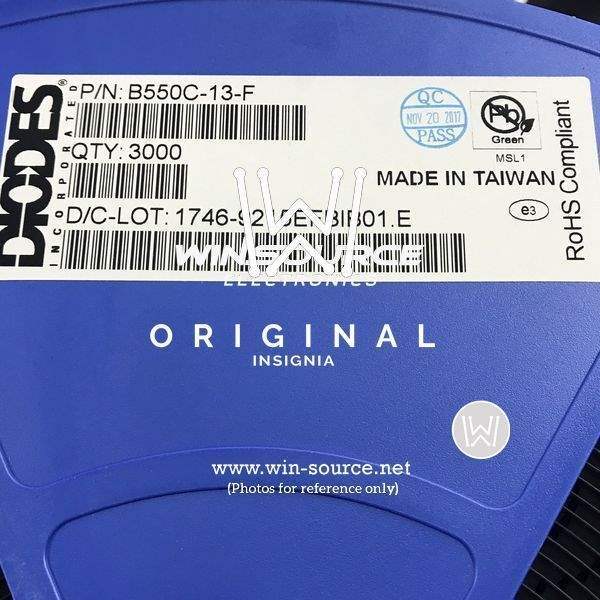

Product Overview: Diodes Incorporated B550C-13-F

The B550C-13-F is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This component is engineered to deliver efficient power management and conversion in a compact, surface-mount package, making it an ideal choice for a wide range of electronic applications.

Key Features and Benefits

• Low Forward Voltage Drop: The B550C-13-F features a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation. This characteristic is particularly beneficial for applications where power conservation is critical.
• High Current Capability: With a high forward surge current capability, this device can handle high current spikes without performance degradation, ensuring reliability and longevity in demanding situations.
• High Frequency Operation: The Schottky barrier design enables the B550C-13-F to operate at higher frequencies than traditional rectifiers, which is advantageous for applications requiring fast switching and response times.
• Thermal Performance: The product is encapsulated in a heat-resistant package that provides excellent thermal performance, ensuring stability and functionality even under high temperature conditions.
• RoHS Compliant: The B550C-13-F complies with the RoHS directive, indicating that it is free from hazardous substances and suitable for use in environmentally sensitive applications.

Applications

The B550C-13-F is versatile and can be used in various applications, including:

• Power supply management
• DC-DC converters
• Automotive applications
• Free-wheeling diodes in converters and motor control circuits
• Polarity protection devices

Product Specifications

The B550C-13-F has a maximum repetitive reverse voltage of 50V and a forward continuous current of 5A, making it suitable for medium power applications. The device is provided in a robust SMC package, designed to optimize board space and ensure easy integration into a variety of circuit designs.

With its combination of efficiency, reliability, and environmental compliance, the B550C-13-F from Diodes Incorporated is an excellent choice for designers looking to enhance their power management systems.
