Product Overview: BAS116UDJ-7

The BAS116UDJ-7 is a high-performance switching diode array designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This product is specifically engineered to meet the demanding requirements of fast switching applications in compact electronic devices.

Key Features

• High-Speed Switching: The BAS116UDJ-7 offers fast switching speeds, making it suitable for high-frequency circuits.
• Dual Series Configuration: It features a dual series configuration that allows for efficient implementation in applications requiring a common cathode pair.
• Low Leakage Current: With its low leakage current, this diode array ensures minimal power loss and improved energy efficiency.

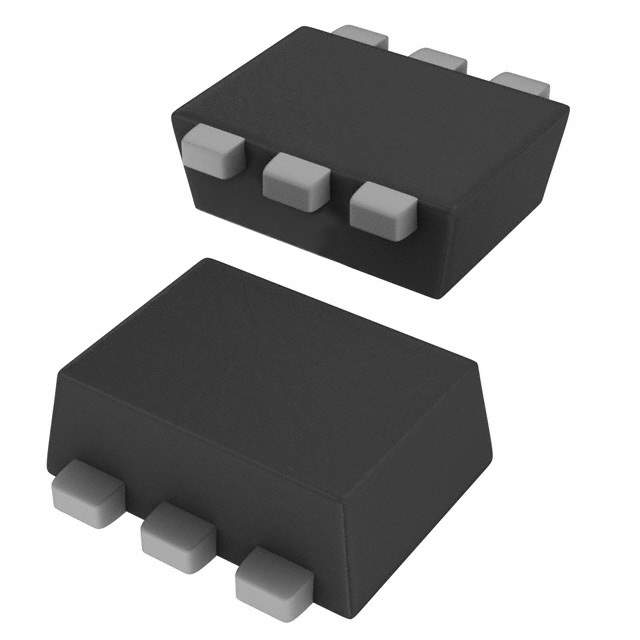

• Surface-Mount Package: The diode array comes in a compact SOT-363 package, which is ideal for space-constrained applications and supports surface-mount technology for easier PCB assembly.
• Lead-Free and RoHS Compliant: Diodes Incorporated ensures that the BAS116UDJ-7 is lead-free and fully compliant with the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice.

Applications

The BAS116UDJ-7 is versatile and can be used in a wide range of applications, including:

• High-speed logic switching circuits
• Power management systems
• Portable and battery-powered devices
• Signal processing
• Telecommunications

Technical Specifications

Some of the key technical specifications of the BAS116UDJ-7 include:

• Reverse Voltage: 85V
• Forward Continuous Current: 215mA
• Power Dissipation: 300mW
• Operating Temperature Range: -55°C to +150°C

With its robust design and advanced features, the BAS116UDJ-7 from Diodes Incorporated is an excellent choice for designers looking for a reliable and efficient switching solution. Its compact form factor and compliance with environmental standards make it a sustainable and future-proof component for a vast array of electronic products.
