BAS40LP-7-F

Part No BAS40LP-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single

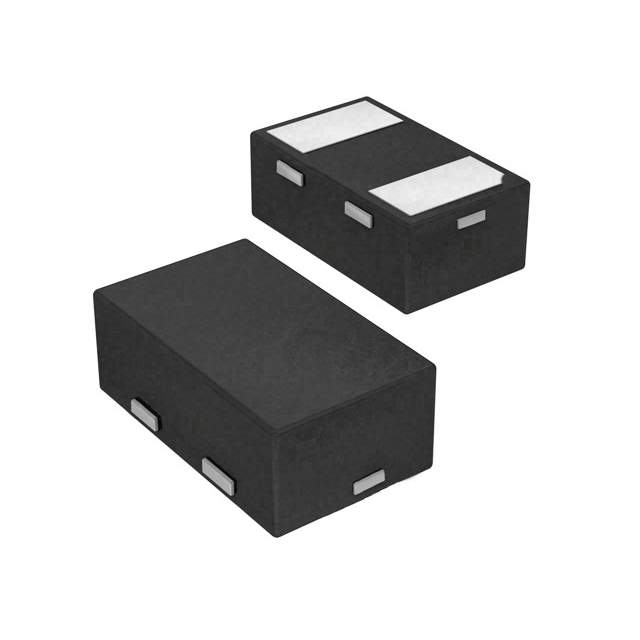

Description DIODE SCHOTTKY 40V 200MA 2DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 40 V 200mA (DC) Surface Mount X1-DFN1006-2
Manufacturer Diodes Incorporated
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 0402 (1006 Metric)
Case / Package X1-DFN1006-2
Family Name BAS40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863453-BAS40LP-7-F
Ultra Librarian 3D Model Ultra Librarian BAS40LP-7-F CAD Model

Description

Product Overview: BAS40LP-7-F from Diodes Incorporated

The BAS40LP-7-F is a high-performance Schottky barrier diode designed and manufactured by Diodes Incorporated, a renowned leader in the semiconductor industry. This diode is engineered to provide fast switching capabilities and low forward voltage drop, making it an ideal choice for a wide range of applications where efficiency is a critical factor.

Key Features

  • Low Power Loss: The Schottky barrier design of the BAS40LP-7-F ensures minimal power loss during operation, which is crucial for energy-sensitive circuits.
  • High Efficiency: With its fast switching speed, the diode improves the overall efficiency of electronic circuits, especially in high-frequency applications.
  • Surface Mount Package: The BAS40LP-7-F comes in a compact SOT-23 package, which is ideal for automated assembly processes and space-constrained applications.
  • Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which translates into reduced thermal stress and improved performance.
  • Lead-Free and RoHS Compliant: Adhering to environmental standards, the BAS40LP-7-F is lead-free and RoHS compliant, making it suitable for use in green products.

Applications

The versatile nature of the BAS40LP-7-F allows it to be used in a variety of electronic circuits. Common applications include:

  • Power supply rectification
  • DC-DC converters
  • Reverse polarity protection
  • Switching power supplies
  • Freewheeling diodes in motor control circuits
  • Charge pump circuits

Technical Specifications

The BAS40LP-7-F boasts impressive technical characteristics that make it a top choice for designers and engineers:

  • Peak Repetitive Reverse Voltage: 40V
  • Forward Continuous Current: 200mA
  • Power Dissipation: 250mW
  • Operating Junction Temperature Range: -55°C to +150°C

With its combination of high-speed switching, low power dissipation, and compact packaging, the BAS40LP-7-F from Diodes Incorporated is an excellent component for modern electronic designs that demand reliability and efficiency.
