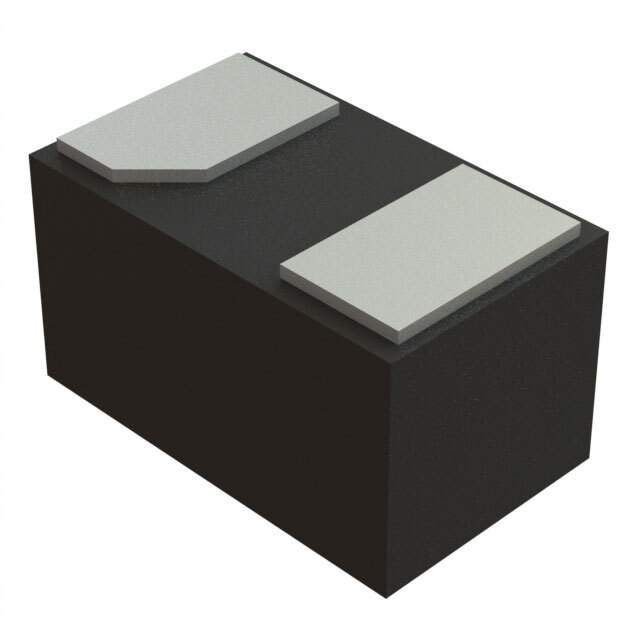

The D3V3HN1B2LP-7B is a high-performance, low-capacitance transient voltage suppressor (TVS) diode, meticulously engineered by Diodes Incorporated to provide state-of-the-art circuit protection. This compact and robust device is designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events that are common in today's fast-paced electronic environments.

Key Features

• Low Clamping Voltage: The device offers excellent clamping voltage characteristics, ensuring that any transient voltages are kept to a minimum, thus providing superior protection for sensitive circuits.
• Low Capacitance: With its low capacitance, the D3V3HN1B2LP-7B is ideal for high-speed data lines, as it minimizes signal attenuation and preserves signal integrity.
• ESD Protection: It is specifically designed to protect against electrostatic discharge (ESD), exceeding the IEC 61000-4-2 (Level 4) standard.
• Small Form Factor: The device comes in a small footprint package, making it suitable for space-constrained applications.
• RoHS Compliant: It meets RoHS standards, ensuring that it is free from hazardous substances and is environmentally friendly.

Applications

The D3V3HN1B2LP-7B is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Portable Electronics
• Smartphones and Tablets
• Data Lines for USB and HDMI Interfaces
• High-Speed Signal Lines
• Wireless Communication Devices

Technical Specifications

Diodes Incorporated ensures that every D3V3HN1B2LP-7B diode meets rigorous quality and performance standards. The device features a peak pulse power dissipation of 350W (8/20μs waveform), a maximum reverse working voltage of 3.3V, and a low leakage current, making it a reliable choice for critical applications.

Ordering and Availability

To meet diverse customer needs, the D3V3HN1B2LP-7B is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For detailed ordering information and availability, please contact Diodes Incorporated or an authorized distributor.
