Product Overview: D5V0S1US2LP-7B from Diodes Incorporated

The D5V0S1US2LP-7B is a high-performance, ultra-low capacitance TVS (Transient Voltage Suppressor) diode designed by Diodes Incorporated to provide superior protection for sensitive electronics from voltage transients induced by electrostatic discharge (ESD) and other transient voltage events. This component is specifically engineered to safeguard data lines, USB interfaces, and other high-speed signal lines from the damaging effects of ESD.

Key Features

• ESD Protection: It offers excellent ESD protection exceeding IEC 61000-4-2 (Level 4) standards, ensuring robust defense for your electronic devices.
• Low Capacitance: With an ultra-low loading capacitance of typically 0.35pF, the D5V0S1US2LP-7B is ideal for protecting high-speed data lines without compromising signal integrity.
• Low Leakage Current: It features a low leakage current that helps to maintain energy efficiency in the end application, making it suitable for battery-powered devices.
• Low Clamping Voltage: The TVS diode provides a low clamping voltage, which ensures that sensitive components are shielded from transient overvoltages.

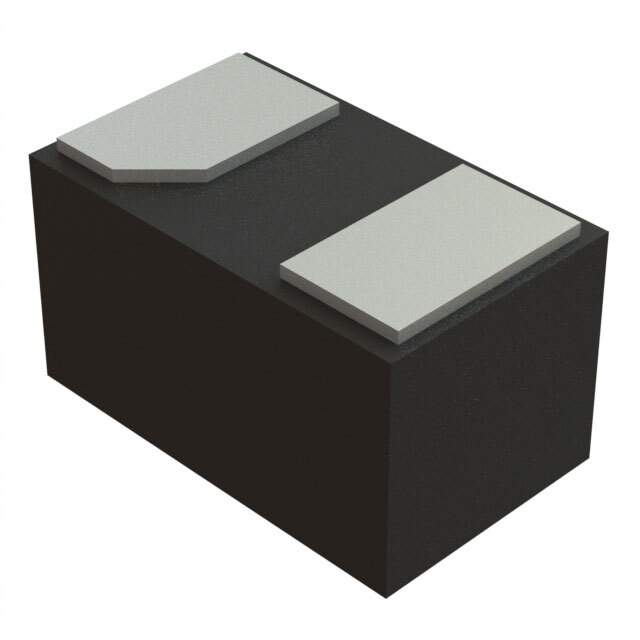

• Compact Package: Housed in a small form factor X1-DFN1006-2 package, it allows for space-efficient PCB layout, which is critical in modern compact electronic designs.

Applications

The D5V0S1US2LP-7B is versatile and can be used in a wide array of applications, including but not limited to:

• USB Power and Data Line Protection
• Smartphones, Tablets, and Portable Electronics
• High-Speed Data Interfaces and Ports
• Consumer Electronics
• IoT Devices

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the D5V0S1US2LP-7B is no exception. It is manufactured to high standards, ensuring that each unit meets stringent quality control criteria for reliable and consistent performance in the field.
