Product Overview: DBF1510U-13 from Diodes Incorporated

The DBF1510U-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global provider of semiconductor products. This device is engineered to meet the stringent requirements of modern electronic applications, offering a compelling mix of low forward voltage drop, high current capability, and superior thermal performance.

Key Features

• High Current Capability: The DBF1510U-13 is capable of conducting up to 15 Amps of continuous forward current, making it suitable for high current applications.
• Low Forward Voltage Drop: With a forward voltage drop as low as 0.98V, this device ensures high efficiency in power conversion, which is critical for energy-sensitive designs.
• Power Dissipation: The rectifier is designed to handle a power dissipation of 3.0W, contributing to its robust performance in demanding situations.
• High Surge Capability: It is capable of withstanding surge currents, ensuring reliability and longevity in applications subject to transient overcurrent conditions.
• Operating Temperature Range: The device operates effectively over a wide temperature range from -55°C to +150°C, accommodating various environmental conditions.

Package and Compliance

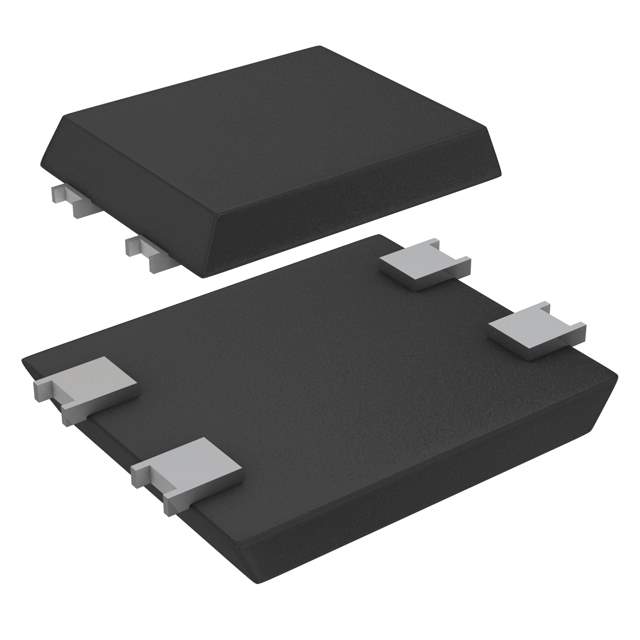

The DBF1510U-13 comes in a PowerDI®5 package, which is known for its compact footprint and low profile, making it an ideal choice for space-constrained applications. The device is also compliant with RoHS standards, ensuring that it meets current environmental regulations regarding hazardous substances.

Applications

This Schottky barrier rectifier is versatile and can be used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Freewheeling diodes in converters and motor control circuits
• Reverse battery protection
• Or-ing diode in redundant power systems

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The DBF1510U-13 has undergone rigorous testing to ensure it meets the reliability standards expected from a leading semiconductor manufacturer. Customers can trust this device for critical and long-term applications.

With its robust design and efficient performance, the DBF1510U-13 is an excellent choice for designers looking for a reliable Schottky barrier rectifier that does not compromise on power or efficiency.
