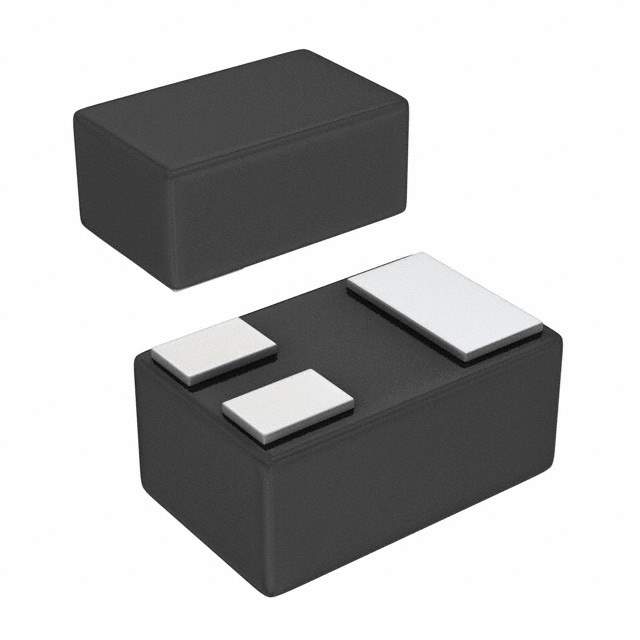

Product Overview: DDTC114ELP-7

The DDTC114ELP-7 is a pre-biased transistor from Diodes Incorporated, designed to provide a convenient and compact solution for digital and switching applications. This innovative component integrates a single transistor and a resistor into one tiny package, facilitating ease of design and reducing board space requirements.

Key Features

• Integrated Bias Resistor: The DDTC114ELP-7 comes with a built-in bias resistor that simplifies circuit design by reducing component count, which is particularly beneficial in space-constrained applications.
• Surface-Mount Package: Encased in a SOT-523 package, this transistor is ideal for surface-mount technology (SMT), allowing for high-density PCB designs and automated assembly processes.
• Low V<sub>CE Saturation Voltage: The transistor is designed to operate with a low collector-emitter saturation voltage, enhancing efficiency by minimizing power loss during operation.
• High Current Gain: With a substantial current gain (h<sub>FE), this component ensures effective amplification in digital and analog signal processing tasks.

Applications

The DDTC114ELP-7 is versatile and can be used in a wide range of applications, including:

• Inverter circuits
• Interface circuits
• Driver circuits
• Signal processing

Electrical Characteristics

Diodes Incorporated has engineered the DDTC114ELP-7 to meet stringent specifications, ensuring reliable performance under various conditions. Some of the key electrical characteristics include:

• Collector-Base Voltage (V<sub>CBO): 50V
• Collector-Emitter Voltage (V<sub>CEO): 50V
• Emitter-Base Voltage (V<sub>EBO): 5V
• Continuous Collector Current (I<sub>C): 100mA
• Power Dissipation (P<sub>D): 150mW

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The DDTC114ELP-7 is subjected to rigorous testing and quality control measures to ensure it meets the industry standards for reliability and performance. This product is RoHS compliant, reflecting the company's dedication to environmental responsibility.

Whether you are designing a new circuit or looking to optimize an existing one, the DDTC114ELP-7 offers a compact, efficient, and reliable solution that can meet the demands of a wide array of electronic applications.
