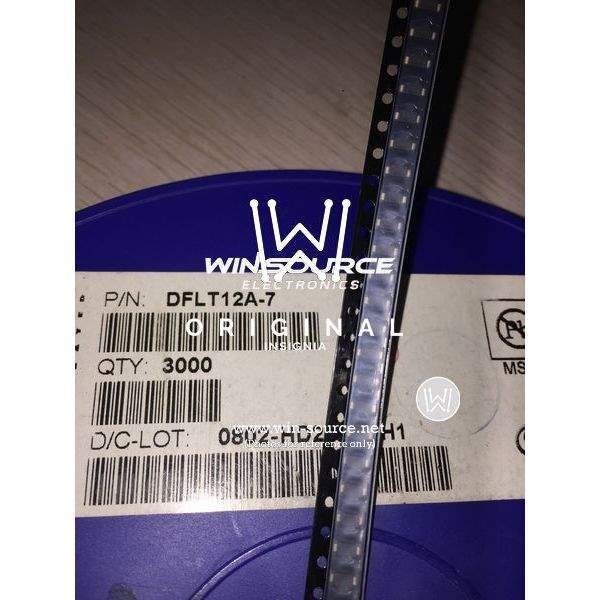

DFLT12A-7

Part No DFLT12A-7
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS Diode Single Uni-Dir 12V 1.125KW 2-Pin PowerDI 123 T/R / TVS DIODE 12VWM POWERDI123
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 19.9V
Peak Pulse Current(Ippm) 11.3A
Power Dissipation - Pd 225W
Applications Automotive
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PowerDI 123
Win Source Part Number 080440-DFLT12A-7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DFLT12A
Introduction Date July 14, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian DFLT12A-7 CAD Model

Description

Introducing the DFLT12A-7 from Diodes Incorporated

The DFLT12A-7 is a cutting-edge surface mount TVS (Transient Voltage Suppressor) diode, meticulously designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is engineered to deliver superior protection against voltage transients induced by inductive load switching and lightning, particularly in sensitive electronic equipment.

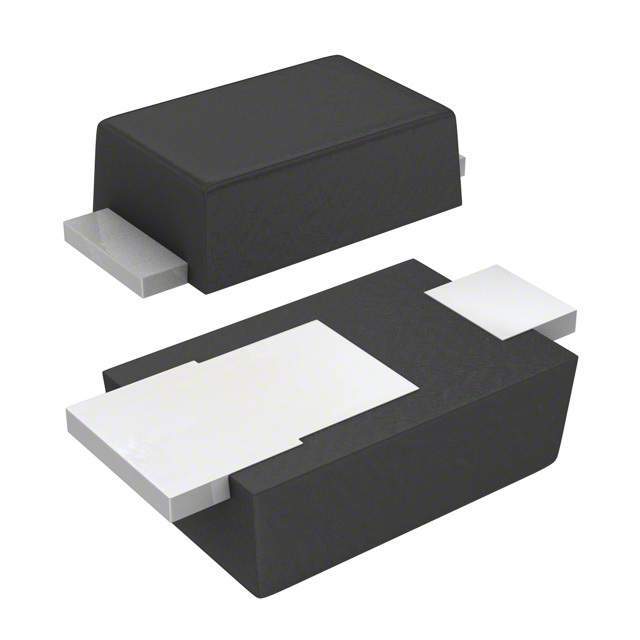

The DFLT12A-7 is encapsulated in the low-profile PowerDI™123 package, which is optimized for high-density circuit board installations. With its small footprint, this TVS diode is ideal for applications where space is at a premium, yet robust protection is essential. It features a stand-off voltage of 12V, making it suitable for a wide range of operating conditions and ensuring the safety of downstream components from electrical stress.

One of the key attributes of the DFLT12A-7 is its exceptional clamping capability. In the event of a transient voltage spike, this device responds swiftly, clamping the overvoltage to a safe level within picoseconds, thereby safeguarding sensitive circuitry from damage or disruption. Its peak pulse power dissipation is rated at an impressive 1,500 watts (@10/1000μs), which is indicative of its ability to handle significant transient power surges.

Moreover, the DFLT12A-7 boasts a low incremental surge resistance and supports a high surge current capability. This feature ensures that the device can withstand multiple high energy surges without performance degradation, thereby providing long-term reliability and stability in harsh electrical environments. Compliance with the RoHS directive makes the DFLT12A-7 an environmentally friendly choice, adhering to current regulations on hazardous substances.

Applications for the DFLT12A-7 are diverse and include the protection of sensitive electronics in consumer, industrial, and automotive sectors. It is particularly well-suited for use in power supplies, portable devices, and communication systems where transient voltage protection is critical for maintaining operational integrity.

In summary, the DFLT12A-7 from Diodes Incorporated is a robust, high-performance TVS diode that offers efficient protection against voltage transients. Its compact design, high surge capability, and compliance with environmental standards make it an excellent choice for designers looking to enhance the durability and reliability of their electronic products.
