DMC3061SVTQ-7 - MOSFET from Diodes Incorporated

The DMC3061SVTQ-7 is a high-performance, dual N-channel enhancement mode field-effect transistor (MOSFET) designed and manufactured by Diodes Incorporated. This component is particularly well-suited for a variety of applications, including power management tasks, load switching, and conversion in consumer electronics, computing devices, and portable equipment.

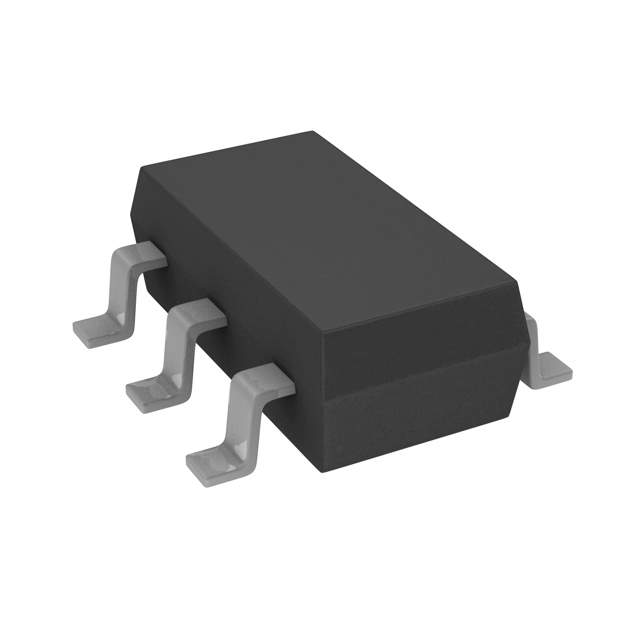

Featuring advanced trench MOSFET technology, the DMC3061SVTQ-7 provides excellent R<sub>DS(on) and low gate charge performance, making it an efficient choice for designs where power density and efficiency are critical. The device is housed in a compact TSOT-26 package, which is both space-saving and offers a low profile, ideal for slim and compact electronic assemblies.

Key specifications of the DMC3061SVTQ-7 include a continuous drain current (I<sub>D) rating of up to 6.5A, making it capable of handling moderate power levels. Its drain-source voltage (V<sub>DSS) is rated at 30V, which allows it to be used in a range of circuits without the risk of breakdown. The gate threshold voltage (V<sub>GS(th)) is specified as a minimum of 0.8V, ensuring that the MOSFET can be driven by low-voltage logic signals.

The MOSFET's low on-resistance minimizes conduction losses, while its fast switching speeds reduce switching losses, contributing to overall system efficiency. Additionally, the DMC3061SVTQ-7 features a body diode, which provides fast reverse recovery and contributes to its versatility in various circuit configurations.

Designed with reliability in mind, the DMC3061SVTQ-7 also includes built-in protections such as over-temperature and over-current safeguards to ensure stable operation under a wide range of conditions. The product is RoHS compliant, reflecting Diodes Incorporated's commitment to environmental sustainability.

Whether you're designing power supplies, motor controls, or looking for a reliable switch for your next project, the DMC3061SVTQ-7 MOSFET from Diodes Incorporated offers a balance of performance, efficiency, and reliability.
