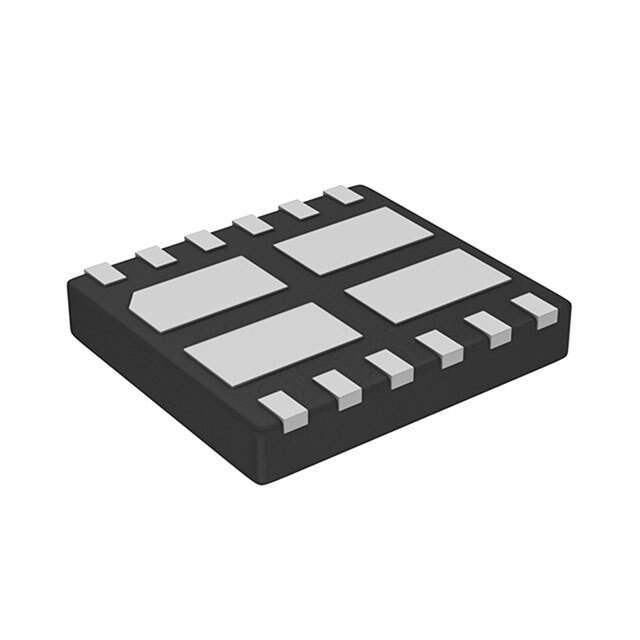

DMHT6016LFJ-13

Part No DMHT6016LFJ-13
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 4N-CH 60V 14.8A 12VDFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products> Transistors FETs, MOSFETs FET, MOSFET Arrays
Manufacturer Diodes Incorporated
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 4 N-Channel (Full Bridge)
Current - Continuous Drain (Id) @ 25°C 14.8A (Ta)
Rds On (Max) @ Id, Vgs 22mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 864pF @ 30V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 12-VDFN Exposed Pad
Win Source Part Number WS1309837-DMHT6016LFJ-13
Ultra Librarian 3D Model Ultra Librarian DMHT6016LFJ-13 CAD Model

Description

This new generation complementary MOSFET H-Bridge features low on-resistance achievable with low gate drive.
