Product Overview: DMN2400UV-7 – A High-Performance MOSFET from Diodes Incorporated

The DMN2400UV-7 is a cutting-edge N-Channel enhancement mode Field Effect Transistor (MOSFET) brought to you by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This MOSFET is designed to offer efficient power management and signal processing in a wide range of electronic applications.

Key Features

• Low On-Resistance: The DMN2400UV-7 boasts an extremely low on-resistance (R<sub>DS(on)), which translates to reduced power losses and improved efficiency in operation.
• High-Speed Switching: Engineered for fast switching, this MOSFET is ideal for high-speed circuitry, enhancing overall performance and responsiveness.
• Low Threshold Voltage: The low threshold voltage ensures that the device can be driven at lower gate voltages, making it compatible with low-voltage logic signals and helping to conserve power.

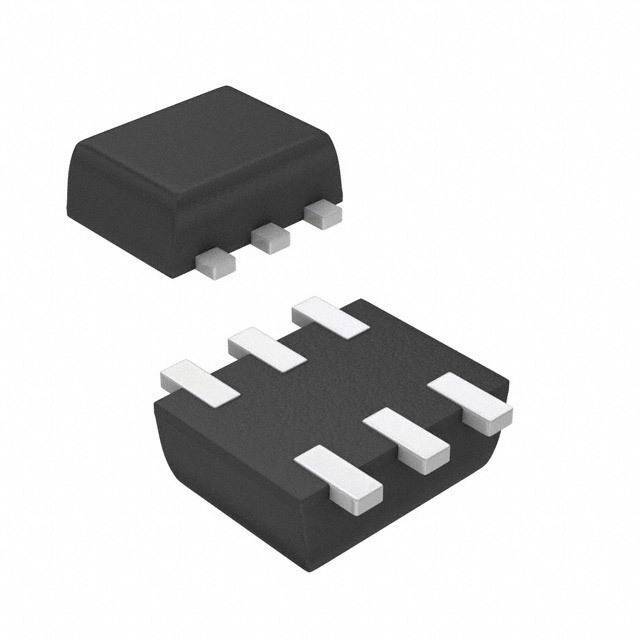

• Small Footprint: Housed in a compact SOT-23 package, the DMN2400UV-7 is perfect for applications where space is at a premium, without compromising on power and performance.
• RoHS Compliant: Complying with RoHS standards, this product is manufactured with the environment in mind, minimizing the use of hazardous substances.

Applications

The DMN2400UV-7 is versatile and can be used in various applications, including:

• Power Management Circuits
• DC-DC Converters
• Battery Management Systems
• Load Switches
• Motor Control Modules
• Portable Electronic Devices

Technical Specifications

The DMN2400UV-7 operates with a continuous drain current of 760mA and a pulsed drain current of 2.5A. It can handle a maximum drain-source voltage (V<sub>DS) of 240V, which allows for high-voltage operations. The gate threshold voltage (V<sub>GS(th)) is specified at 1.2V, and the device features a total gate charge (Q<sub>g) of just 0.83nC, which is indicative of its swift response times.

For those looking for a reliable and efficient MOSFET solution, the DMN2400UV-7 from Diodes Incorporated is an excellent choice that combines performance with compactness and environmental consciousness.
