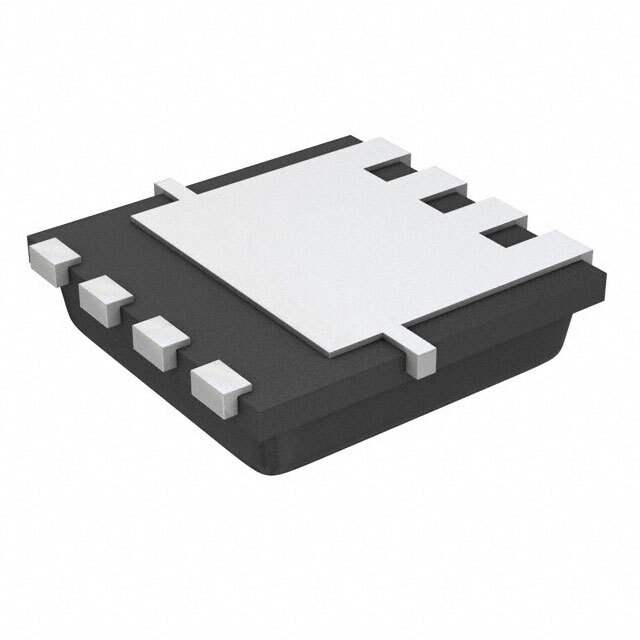

The DMP3013SFV-13 is a high-performance P-Channel enhancement mode Field Effect Transistor (MOSFET) designed and manufactured by Diodes Incorporated. This MOSFET is an ideal choice for power management applications due to its low on-resistance and high switching speed. It is packaged in a compact and reliable Super-DFN3030-8 (PowerDI3333-8) package, which ensures a small footprint on the PCB while providing excellent thermal performance.

Key Features

• Low On-Resistance: The device boasts an extremely low on-resistance of 13.5 mΩ at VGS = -10 V, which significantly reduces conduction losses and improves efficiency in circuit operation.
• High Power Dissipation: With a power dissipation of 2.5 W, the DMP3013SFV-13 can handle high currents without overheating, making it suitable for demanding applications.
• Advanced Packaging: The Super-DFN3030-8 (PowerDI3333-8) package offers a small form factor along with excellent thermal characteristics, ensuring reliable operation even under high power conditions.
• Voltage Rating: It has a drain-source voltage (VDS) rating of -30 V, which allows it to be used in circuits with moderate voltage requirements.
• Gate Charge: The MOSFET has a low total gate charge (Qg) of 15.4 nC, which results in faster switching speeds and reduced switching losses.

Applications

The DMP3013SFV-13 is versatile and can be used in a wide range of applications including, but not limited to, load switches, power management circuits, battery management systems, and DC-DC converters. Its high efficiency and power handling capabilities also make it suitable for use in portable electronics, computing devices, and telecommunications equipment.

Environmental and Quality Certifications

Diodes Incorporated is committed to environmental stewardship and product quality. The DMP3013SFV-13 complies with RoHS standards, ensuring that it is free from hazardous substances. Additionally, it is manufactured in facilities that are certified to ISO 9001:2015 for quality management systems, which guarantees a high level of product reliability and performance.
