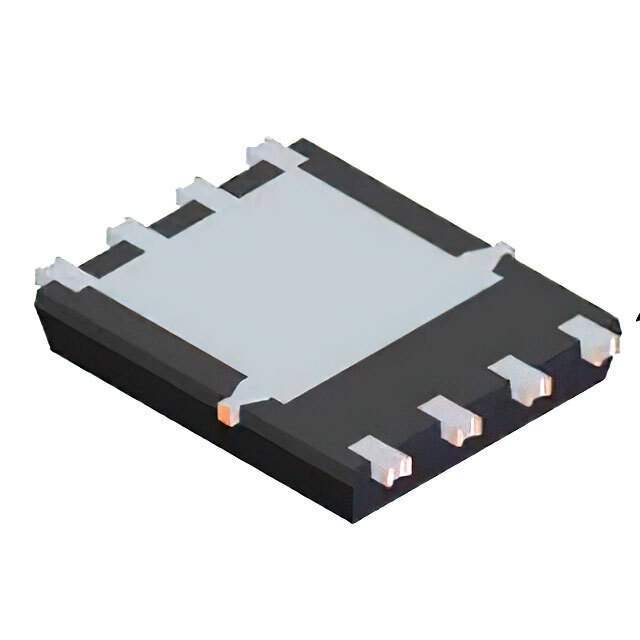

Same model may have multiple batches, images only for reference.
DMP4006SPSWQ-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMP4006SPSWQ-13

Part No DMP4006SPSWQ-13
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET BVDSS: 41V~60V POWERDI506
Datasheet
DMP4006SPSWQ-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Part Status Active
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 115A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 5.2mOhm @ 9.8A, 10V
Gate Charge (Qg) (Max) @ Vgs 162 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 6855 pF @ 20 V
Power Dissipation (Max) 3.4W (Ta), 104W (Tc)
Win Source Part Number WS1309764-DMP4006SPSWQ-13
Ultra Librarian 3D Model Ultra Librarian DMP4006SPSWQ-13 CAD Model

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:

• Reverse-polarity protections
• BLDC motor controls
• Power-management functions
• Systems/load switches
