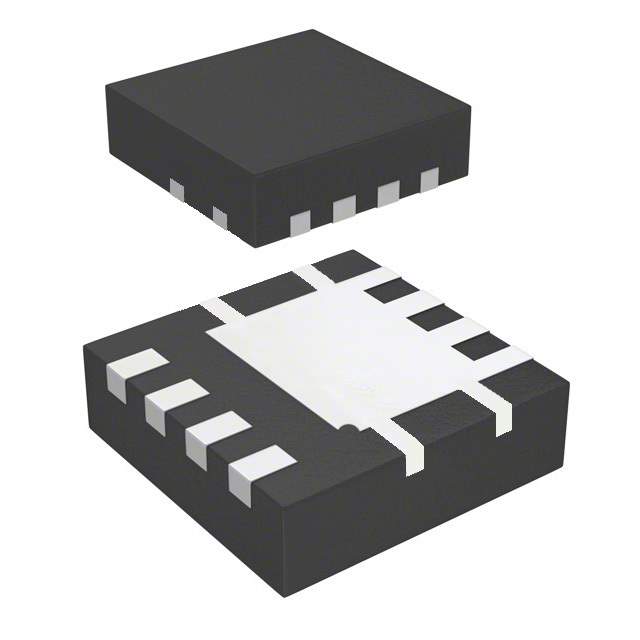

DMP6023LFGQ-13

Part No DMP6023LFGQ-13
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Diodes Incorporated
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 7.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 25mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 53.1 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2569 pF @ 30 V
Power Dissipation (Max) 1W (Ta)
Temperature Range - Operating -55°C ~ 155°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerDI3333-8
Package / Case 8-PowerVDFN
Base Product Number DMP6023
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278392-DMP6023LFGQ-13
Ultra Librarian 3D Model Ultra Librarian DMP6023LFGQ-13 CAD Model

Description

DMP6023LFGQ-13 MOSFET by Diodes Incorporated

The DMP6023LFGQ-13 from Diodes Incorporated is a high-performance, P-channel enhancement mode MOSFET designed for a variety of applications that demand efficiency and reliability. This power MOSFET is a part of Diodes Incorporated's extensive range of semiconductor products, known for their quality and performance in the electronics industry.

This MOSFET is built using advanced trench technology to provide excellent RDS(on) and low gate charge. The device features a continuous drain current of -6.3A and a pulsed drain current of -25.2A, ensuring it can handle significant power for its size. With a power dissipation of 2.5W, the DMP6023LFGQ-13 is capable of operating in environments that require robust power management.

The device operates at a maximum junction temperature of 150°C, making it suitable for high-temperature applications. Its threshold voltage is specified at -0.8V to -1.5V, which allows for efficient gate control. The DMP6023LFGQ-13 also offers a fast switching speed, which is crucial for applications that require quick response times.

Encased in a compact, surface-mount PowerDI3333-8 package, the DMP6023LFGQ-13 is optimized for space-constrained applications. The package is designed to minimize on-board real estate usage while maximizing thermal performance, ensuring the MOSFET operates efficiently even in limited space environments.

Common applications for the DMP6023LFGQ-13 include power management tasks such as load switches, battery management systems, and DC-DC converters. Its P-channel configuration makes it an ideal choice for high-side switching applications where a negative voltage drive is preferable.

Overall, the DMP6023LFGQ-13 is a reliable and efficient solution for designers looking to improve their power management systems. With its advanced technology, compact footprint, and robust performance, it represents a smart choice for a wide range of electronic applications.

For detailed specifications and application notes, engineers and designers are encouraged to consult the datasheet available on the Diodes Incorporated website or contact their technical support for further assistance.
