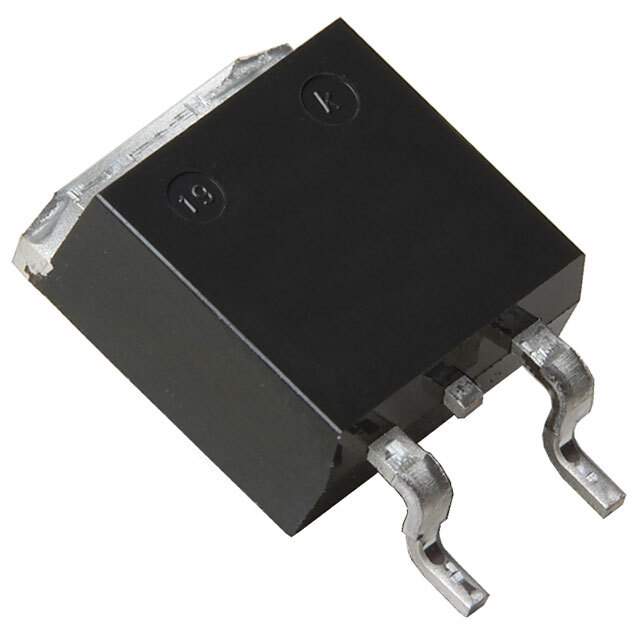

PSMN1R5-30BLEJ Real Image
Same model may have multiple batches, images only for reference.

PSMN1R5-30BLEJ

Part No PSMN1R5-30BLEJ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 120A D2PAK  /  N-Channel 30 V 120A (Tc) 401W (Tc) Surface Mount D2PAK
Datasheet
PSMN1R5-30BLEJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 228 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 14934 pF @ 15 V
Power Dissipation (Max) 401W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package D2PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number PSMN1R5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 568-10256-6,1727-1101-2,568-10256-6-ND,568-10256-2,568-10256-1,1727-1101-6,934067368118,568-10256-1-ND,568-10256-2-ND,1727-1101-1,PSMN1R5-30BLEJ-ND
Standard Package 800
Win Source Part Number 1010191-PSMN1R5-30BLEJ
Ultra Librarian 3D Model Ultra Librarian PSMN1R5-30BLEJ CAD Model

Description

The PSMN1R5-30BLEJ is an N-Channel MOSFET transistor that is designed for use in discrete semiconductor products.

  • Continuous drain current: 120A @ 25°C
  • On-resistance: 1.5mOhm @ 25A, 10V
  • Maximum gate-source voltage: ±20V
  • Maximum drain-source voltage: 30V
  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Gate charge: 228 nC @ 10V
  • Input capacitance: 14934 pF @ 15V
  • Power dissipation: 401W @ Tc
  • Temperature range: -55°C to 175°C (TJ)
