The FR801 from Diodes Incorporated is a robust rectifier diode, designed to offer efficient and reliable performance in a variety of applications. This component is well-suited for high-frequency rectification and freewheeling application in switching power supplies, inverters, and as polarity protection diode.

Key Features

• High Current Capability: The FR801 can handle a high forward surge current, making it ideal for scenarios where a sudden influx of power is expected.
• Low Forward Voltage Drop: With its low forward voltage drop, this diode ensures minimal power loss, which enhances the overall efficiency of the circuit.
• High Reliability: The construction and materials used in the FR801 are chosen for their durability and reliability, ensuring a long operational life.
• Fast Switching Speed: Engineered for quick response times, the FR801 is capable of fast switching, which is crucial for high-frequency applications.
• RoHS Compliant: The FR801 meets the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly and safe for use in various electronics.

Electrical Characteristics

With a maximum repetitive peak reverse voltage (VRRM) of 50V and an average rectified forward current (IO) of 8.0A at TA = 25°C, the FR801 is capable of handling a substantial amount of power. It also boasts a maximum forward voltage (VF) of 0.95V at 8.0A, ensuring that power loss through the diode is kept to a minimum during operation.

Applications

• Power Supply Units (PSUs)
• Automotive Inverters
• DC-DC Converters
• LED Lighting
• Consumer Electronics

Physical Characteristics

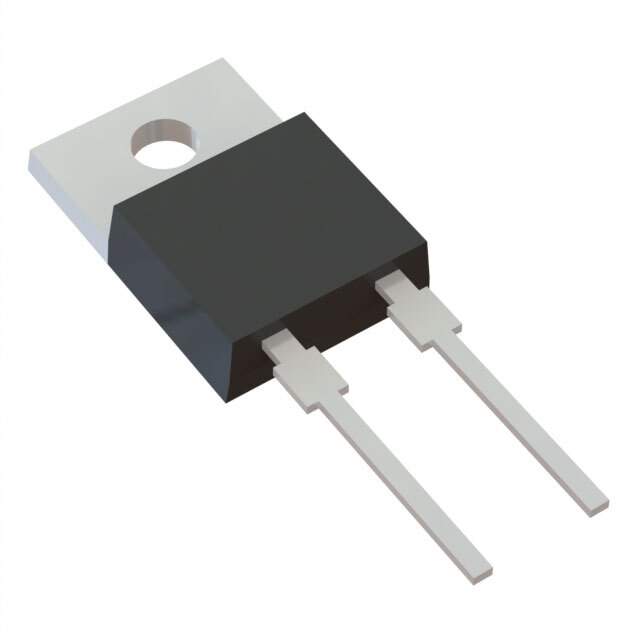

The FR801 comes in a molded plastic case that is designed to offer superior mechanical protection and ensures a robust physical structure. It also features highly conductive terminals for easy soldering and reliable electrical connections.

Conclusion

The FR801 from Diodes Incorporated is a high-performance rectifier diode that combines efficiency, reliability, and fast switching capabilities. Its compliance with RoHS standards and its suitability for a wide range of applications make it a versatile choice for designers and engineers looking to enhance their power management systems.
