Product Overview: FZT696BTA PNP Transistor

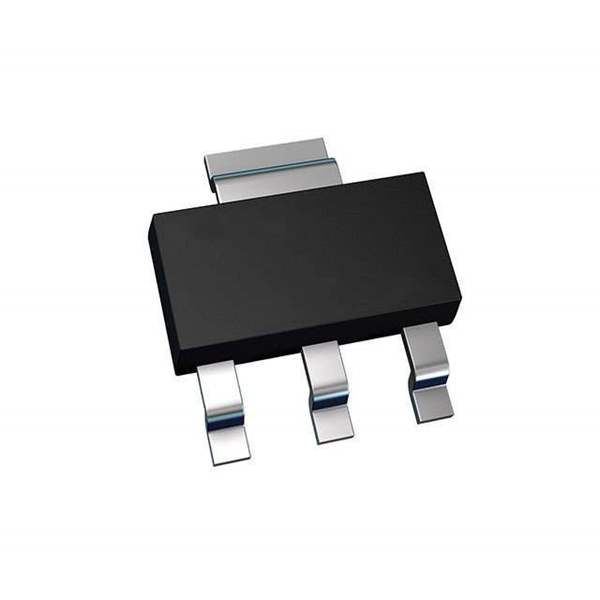

The FZT696BTA is a high-performance PNP bipolar junction transistor (BJT) designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This transistor is part of Diodes Incorporated's extensive range of transistor products, known for their reliability and efficiency. The FZT696BTA is housed in a compact SOT-223 surface-mount package, making it suitable for automated assembly processes and applications where space is at a premium.

With its PNP polarity, the FZT696BTA is optimized for use as a switch or amplifier in various electronic circuits. It is capable of handling continuous collector currents up to 3A, making it an excellent choice for moderate power applications. The device features a collector-emitter voltage (VCEO) of -15V and a collector-base voltage (VCBO) of -120V, providing a wide operating range for various applications.

The FZT696BTA offers a gain bandwidth product (fT) of 140MHz, which ensures good frequency response, making it suitable for amplification tasks in audio and signal processing applications. Additionally, the transistor has a low saturation voltage, which helps to minimize power loss and improve efficiency when operating in the saturation region.

This transistor is designed for high-speed switching applications, and its high current gain (hFE) ensures that it can be driven by low base currents, which is beneficial for power-sensitive designs. The FZT696BTA is commonly used in power management circuits, motor control systems, and general-purpose amplification tasks.

Diodes Incorporated's commitment to quality is evident in the FZT696BTA, as it is manufactured to meet stringent industry standards for performance and reliability. Whether used in consumer electronics, industrial systems, or automotive applications, the FZT696BTA from Diodes Incorporated is a versatile and dependable choice for designers and engineers seeking a high-quality PNP transistor.
