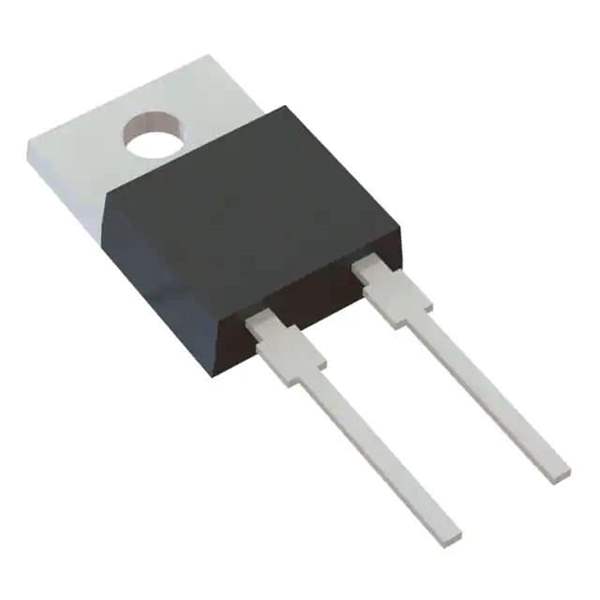

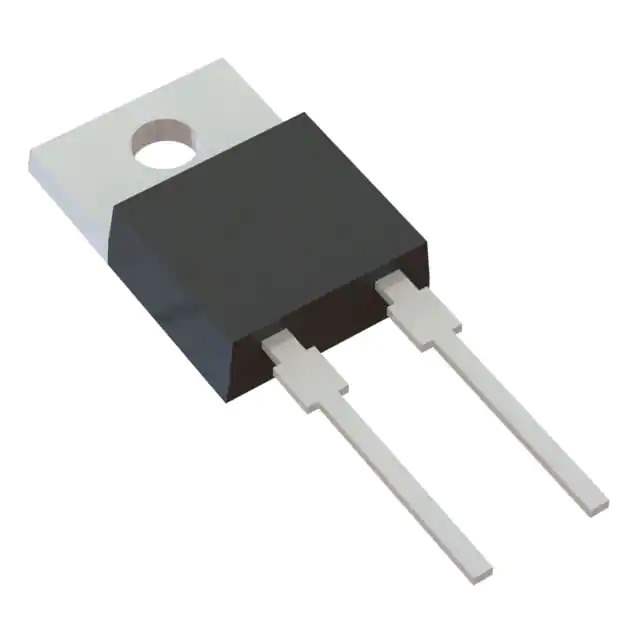

MBR1640

Part No MBR1640
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 16A TO220AC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Diodes Incorporated
Package Tube
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 630 mV @ 16 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Capacitance @ Vr, F 450pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 220658-MBR1640
Ultra Librarian 3D Model Ultra Librarian MBR1640 CAD Model

Description

The MBR1640 from Diodes Incorporated is a robust Schottky barrier rectifier that offers superior performance in a compact package. This component is designed to provide efficient low voltage drop and fast switching capabilities, making it an ideal choice for a wide range of power conversion and management applications.

Key Features:

  • High Surge Capability: The MBR1640 is capable of handling high surge currents, ensuring reliable performance during peak conditions.
  • Low Power Loss: With its low forward voltage drop, this rectifier minimizes power loss, which improves efficiency and reduces thermal stress on the system.
  • High Current Capacity: Rated at 16A, the MBR1640 can handle significant current, suitable for high-power applications.
  • High Temperature Operation: The device can operate at junction temperatures ranging from -55°C to +150°C, accommodating a wide range of environmental conditions.
  • Guard Ring Die Construction: The inclusion of a guard ring enhances the device's reliability by providing protection against voltage spikes and transients.

Applications:

The MBR1640 is versatile and can be used in various applications, including:

  • Power supply units
  • DC-DC converters
  • Battery charging systems
  • Free-wheeling diodes in converters and motor control circuits
  • Energy storage systems

Package and Quality:

Encased in a TO-220AB package, the MBR1640 is designed for easy installation and is compatible with a variety of PCB layouts. Diodes Incorporated ensures that this product meets high-quality standards, with rigorous testing and quality control measures in place.

Conclusion:

The MBR1640 Schottky Barrier Rectifier from Diodes Incorporated is a reliable and efficient solution for engineers looking to improve power conversion efficiency with minimal power loss and high surge capacity. Its robust design and versatile application range make it a valuable component in any power management system.
