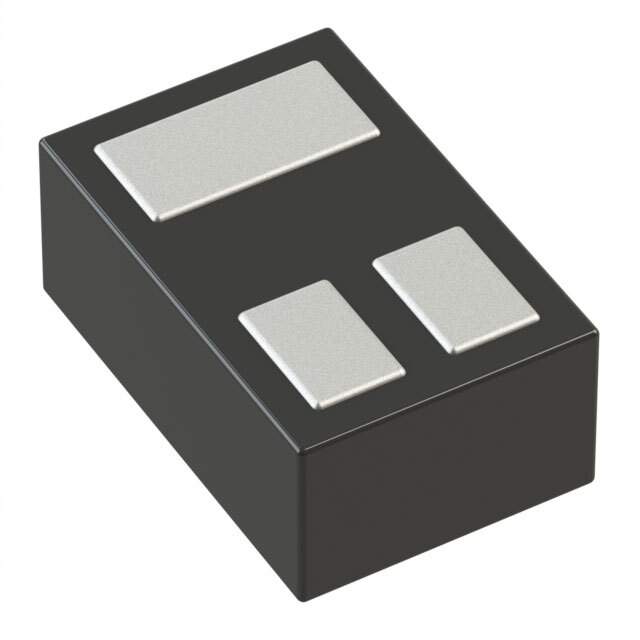

Product Overview: MMBT2222ALP4 by Diodes Incorporated

The MMBT2222ALP4 is a high-performance NPN bipolar junction transistor (BJT) developed by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This transistor is designed for general-purpose amplification and switching applications, offering a versatile solution for a wide range of electronic circuits.

Key Features

• Transistor Type: NPN - This allows for efficient current amplification when a small base current controls a larger collector current.
• Voltage & Current Ratings: It can handle a collector-emitter voltage (VCEO) of up to 40V, a collector-base voltage (VCBO) of 75V, and a continuous collector current (IC) of up to 600mA, making it suitable for moderate power handling applications.
• High Gain Bandwidth Product: With a transition frequency (fT) of 300MHz, the MMBT2222ALP4 is capable of operating at high frequencies, which is ideal for amplification in radio frequency (RF) applications.
• Low Saturation Voltage: This feature ensures lower power dissipation during the saturation mode, enhancing energy efficiency in switching applications.
• Surface-Mount Package: The device comes in a SOT-23 package, which is a compact, surface-mount package allowing for efficient use of PCB space.

Applications

The MMBT2222ALP4 is suitable for a variety of applications, including but not limited to:

• Signal amplification in audio and video equipment
• Driver stages in hi-fi amplifiers and television circuits
• Switching loads in consumer electronics
• Control systems in industrial automation
• RF amplification in wireless communication devices

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability. The MMBT2222ALP4 transistor is manufactured to meet the highest industry standards, ensuring stable performance and longevity even under demanding conditions. Its robust construction is designed to withstand thermal stress and minimize failure rates, providing a reliable component for any electronic project or commercial product.

With its combination of high performance, versatility, and reliability, the MMBT2222ALP4 from Diodes Incorporated stands out as an excellent choice for designers and engineers looking for a general-purpose NPN transistor for their next project.
