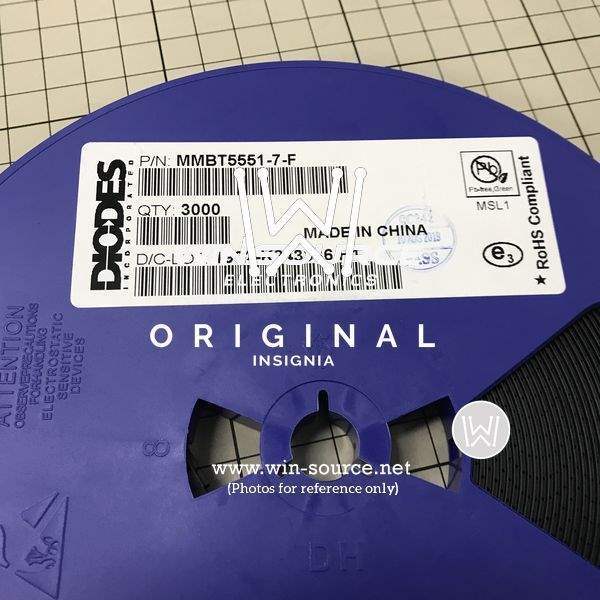

Product Overview: MMBT5551-7-F by Diodes Incorporated

The MMBT5551-7-F is a high-performance NPN bipolar transistor designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This transistor is part of their extensive range of transistor products designed for use in a wide array of electronic applications.

With its compact SOT-23 package, the MMBT5551-7-F offers designers a small form factor solution that is ideal for space-constrained applications. Despite its small size, it delivers robust performance with a collector-emitter voltage (V<sub>CEO) of 160V, collector current (I<sub>C) of up to 600mA, and a power dissipation of 350mW, making it suitable for high-voltage and medium-power applications.

The transistor features a continuous collector current of 600mA, which allows it to handle moderate levels of current without overheating. Its high gain bandwidth product (f<sub>T) of 100MHz makes it well-suited for amplification applications at radio frequencies. The MMBT5551-7-F also boasts a low collector-emitter saturation voltage, ensuring efficient operation with minimal power loss, which is crucial for battery-powered devices.

Common applications for the MMBT5551-7-F include signal amplification, switching circuits, and power management in consumer electronics, telecommunication devices, and computing equipment. It is also used in driving small motors, power supplies, and in various types of control circuits due to its fast switching capabilities.

Diodes Incorporated has designed the MMBT5551-7-F with reliability in mind. The device is characterized for operation from -55°C to +150°C, making it suitable for use in harsh environments. Additionally, it is compliant with RoHS and Green standards, reflecting the company's commitment to environmental sustainability.

In summary, the MMBT5551-7-F from Diodes Incorporated is a versatile, high-voltage NPN bipolar transistor that offers a balance of power and efficiency in a small package, ideal for a broad range of electronic applications.
