Product Overview: PDS3100Q-13 from Diodes Incorporated

The PDS3100Q-13 is a high-performance, surface-mount Schottky Barrier Rectifier designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This device is particularly suitable for applications requiring low voltage drop and high efficiency.

Key Features

• Low Forward Voltage Drop: The PDS3100Q-13 boasts a low forward voltage drop, which enhances system efficiency and is particularly beneficial in low voltage applications.
• High Surge Capability: With its robust surge handling capacity, this device can withstand high current peaks without performance degradation, making it ideal for applications that experience frequent surges.
• Power Dissipation: It has a power dissipation of 3.1W, which allows for a good balance between power handling and thermal management.
• RoHS Compliant: The product meets the requirements of the RoHS directive, making it suitable for use in environmentally sensitive applications.

Electrical Characteristics

• Maximum Repetitive Reverse Voltage (Vrrm): 100V
• Maximum RMS Voltage (Vrms): 70V
• Maximum DC Blocking Voltage (Vdc): 100V
• Maximum Average Forward Rectified Current (Io): 3A
• Operating Junction Temperature Range: -55°C to +150°C

Package and Quality Assurance

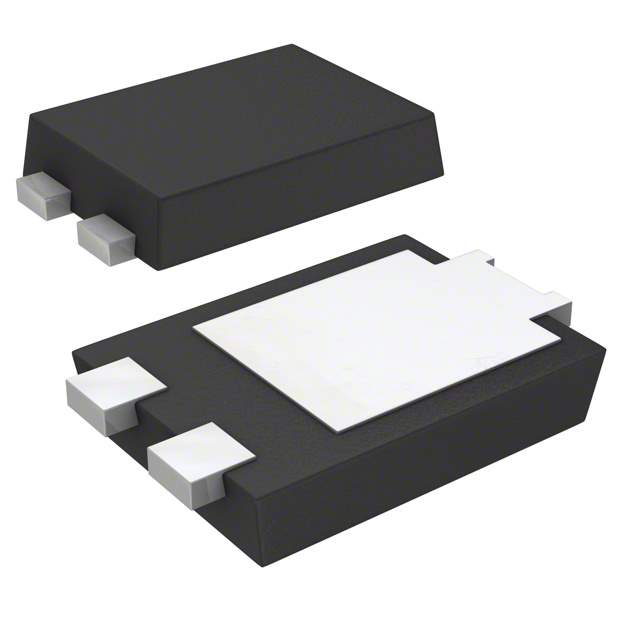

The PDS3100Q-13 comes in a PowerDI® 123 package, which is a compact and low-profile surface-mount package that provides excellent thermal performance and is easy to handle in PCB assembly processes. The product is provided in tape and reel packaging, facilitating automated assembly and mass production.

Diodes Incorporated ensures that all of its products, including the PDS3100Q-13, pass rigorous quality assurance tests and adhere to international standards. Customers can trust the consistent performance and reliability of this Schottky Barrier Rectifier for their electronic designs.

Applications

This Schottky Barrier Rectifier is widely used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Freewheeling diodes
• Polarity protection devices
• Lighting systems
• Automotive applications

With its combination of efficiency, durability, and compliance with environmental standards, the PDS3100Q-13 is an excellent choice for designers and manufacturers looking for a reliable rectifier solution.
