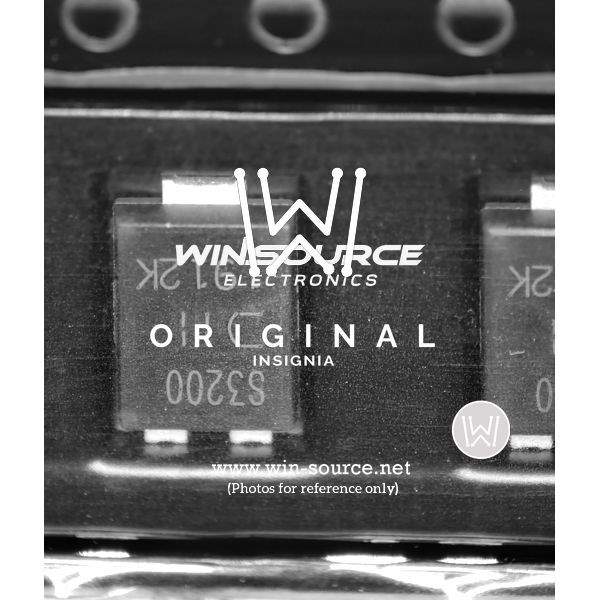

The PDS3200Q-13 is a high-performance, PowerDI®5 surface-mount Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This rectifier is engineered to meet the needs of modern compact electronic devices that require high efficiency, low power loss, and space-saving solutions.

Key Features

• Low Forward Voltage Drop: The PDS3200Q-13 offers a low forward voltage drop, which enhances power efficiency by minimizing power loss during operation.
• High Surge Current Capability: This product is capable of withstanding high surge currents, ensuring reliability and robust performance during transient conditions.
• PowerDI®5 Package: The PowerDI®5 package is designed for optimal thermal performance and occupies less board space, making it ideal for high-density circuit designs.
• Lead-Free and RoHS Compliant: The PDS3200Q-13 adheres to environmental standards, being lead-free and RoHS compliant, which makes it suitable for use in green products.
• High Reliability: With its excellent thermal characteristics and robust design, this rectifier provides a reliable solution for high-temperature applications.

Applications

The versatility of the PDS3200Q-13 allows it to be used in a wide array of applications. It is particularly well-suited for use in:

• Power management systems
• DC-DC converters
• Free-wheeling diodes in power supplies
• Reverse battery protection circuits
• Portable devices and battery-powered equipment

Technical Specifications

The PDS3200Q-13 boasts a maximum average forward rectified current of 3A, with a peak repetitive reverse voltage of 200V. Its low forward voltage drop and high surge capability make it an excellent choice for high-efficiency power conversion applications.

Ordering Information

The product is available with the part number PDS3200Q-13 and comes in tape and reel packaging, facilitating easy integration into automated manufacturing processes.
