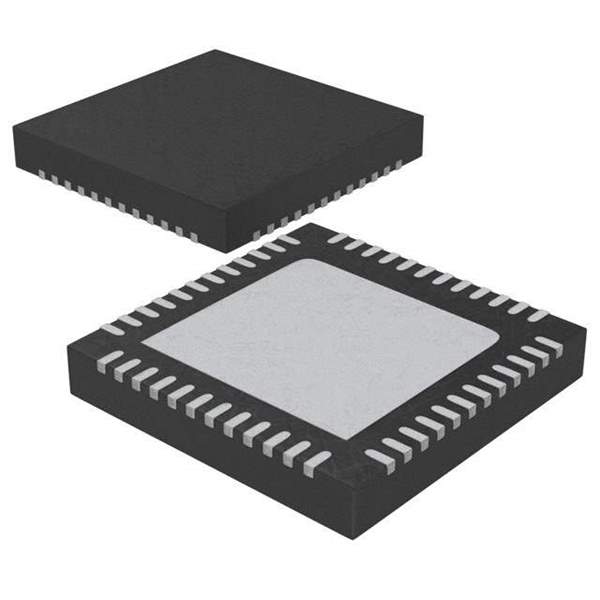

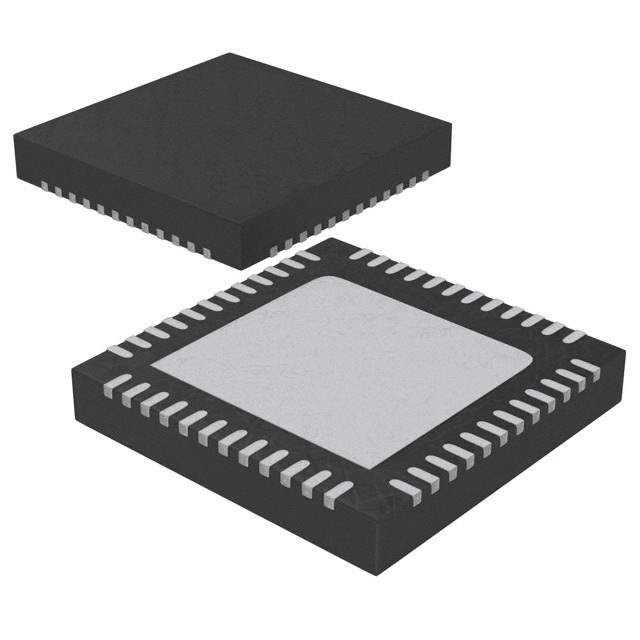

PI2EQX3232AZDEX - High-Performance ReDriver from Diodes Incorporated

The PI2EQX3232AZDEX is a cutting-edge signal conditioning ReDriver from Diodes Incorporated, designed to enhance signal integrity by performing equalization on deteriorated inputs before retransmitting them to the outputs. This specialized integrated circuit (IC) is particularly suited for high-speed signal chains that require pristine signal quality over extended distances or through noisy environments.

Key Features

• Signal Integrity: Equipped with advanced equalization techniques, the PI2EQX3232AZDEX is capable of restoring signals to their original integrity, making it ideal for high-speed data transmission applications.
• High-Speed Performance: This ReDriver supports data rates up to 8 Gbps, catering to the needs of fast communication protocols and ensuring compatibility with next-generation data transfer standards.
• Low Power Consumption: Designed with energy efficiency in mind, the device operates with minimal power dissipation, which is crucial for maintaining the thermal integrity of systems and for applications that are sensitive to power consumption.
• Programmable Equalization: The PI2EQX3232AZDEX provides programmable equalization levels, allowing for fine-tuning to achieve optimal performance across various cable lengths and signal conditions.
• Flexible Application: This ReDriver is suitable for a wide range of applications, including USB 3.0, SATA 3.0, PCI Express 2.0, and other high-speed interfaces, making it a versatile choice for system designers.

Applications

With its robust feature set, the PI2EQX3232AZDEX is an excellent solution for a multitude of applications where signal integrity is paramount. It is commonly used in:

• Desktop and Laptop PCs
• Server and Storage Systems
• Networking Equipment
• Consumer Electronics
• Data Center Infrastructure

Technical Specifications

The device is packaged in a compact, surface-mountable form factor and is specified for operation over the industrial temperature range. It features a single power supply voltage and comes with an I2C interface for device configuration and management.

Conclusion

The PI2EQX3232AZDEX from Diodes Incorporated stands out as a high-performance ReDriver that ensures signal integrity across various high-speed interfaces. Its programmability, low power consumption, and support for multiple data rates make it an indispensable component for system designers aiming to achieve reliable and efficient data transmission in their products.
