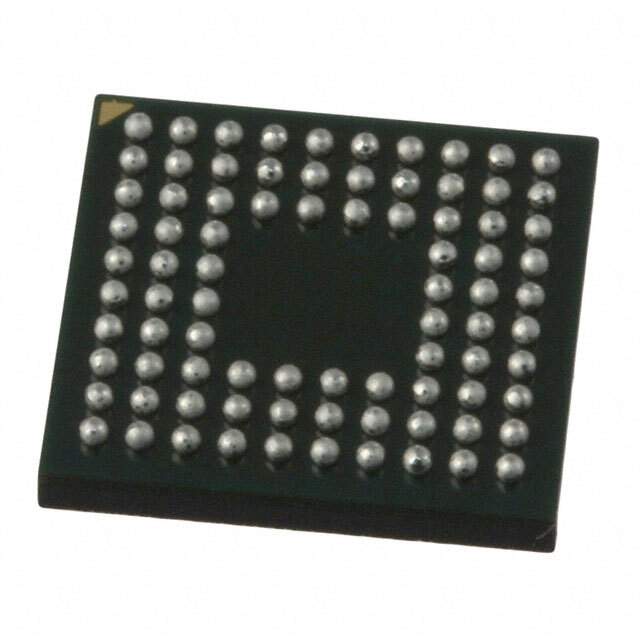

The PI2EQX4402DNBEX is a high-performance, 4-channel, PCIe 2.0 signal ReDriver from Diodes Incorporated, designed to enhance signal quality by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, maximizing system performance and extending the reach of your high-speed serial links.

Key Features

• PCIe 2.0 Compliance: This device is fully compliant with PCIe 2.0 specifications, ensuring compatibility with a wide range of applications and systems.
• 4 Differential Channels: Equipped with 4 differential channels that can operate at 5.0 Gbps, providing flexibility and high throughput for demanding applications.
• Programmable Equalization: Features programmable equalization levels to optimize performance over various physical media by reducing inter-symbol interference.
• Programmable Transmit De-emphasis: Includes programmable transmit de-emphasis to compensate for signal loss over long PCB traces or cables.
• Low Power Consumption: Designed for energy efficiency, this ReDriver consumes low power, making it suitable for eco-conscious designs.
• Automatic Power Saving Mode: The device features an automatic power-saving mode that reduces power consumption when no input signal is detected.
• Small Form Factor: Available in a space-saving package, the PI2EQX4402DNBEX is ideal for compact systems where board space is at a premium.

Applications

The PI2EQX4402DNBEX is versatile and can be used in a variety of applications. It is particularly well-suited for use in:

• Desktop and Laptop PCs
• Server and Storage Systems
• Networking Equipment
• Data Center Infrastructure
• High-performance Computing
• Consumer Electronics

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the PI2EQX4402DNBEX is no exception. Manufactured with the highest standards, this ReDriver is designed to meet the rigorous demands of modern electronic systems, ensuring stable and reliable performance across a wide range of environmental conditions.
