The PI3EQX12902AZLEX is a high-performance, PCIe 3.0 signal ReDriver from Diodes Incorporated, designed to enhance signal integrity by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, maximizing system performance. This device is perfect for applications that demand high-speed data transmission and where signal integrity may be compromised due to long PCB traces or cables.

Key Features

• PCIe 3.0 Support: Fully compliant with PCI Express Base Specification Revision 3.0, this ReDriver supports 8.0 GT/s (Giga Transfers per second), ensuring compatibility with the latest high-speed interfaces.
• Signal Enhancement: The device includes programmable equalization, swing, and flat gain to optimize performance over a variety of physical mediums.
• Low Power Consumption: Designed for power efficiency, the PI3EQX12902AZLEX consumes minimal power, making it suitable for energy-conscious applications.
• Adjustable Settings: It offers programmable settings via pin strap or I2C, providing flexibility and control over signal characteristics for specific application requirements.

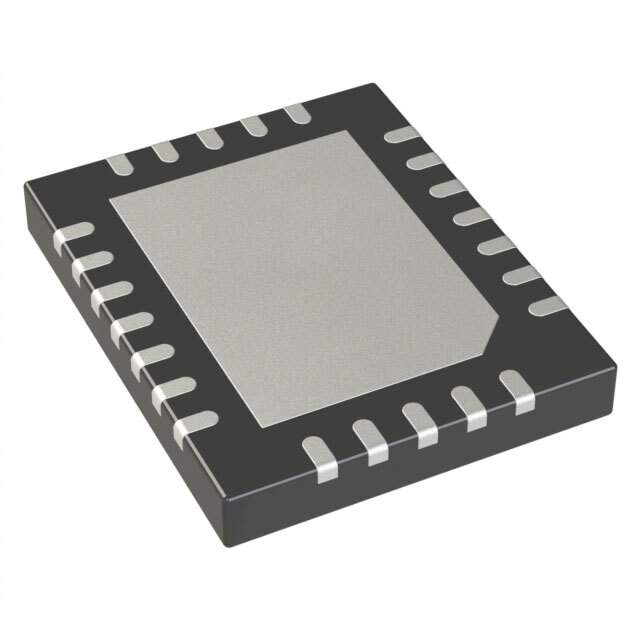

• Small Form Factor: Available in a compact package, the PI3EQX12902AZLEX is ideal for space-constrained applications.

Applications

The PI3EQX12902AZLEX is versatile and can be used in a wide array of applications, including but not limited to:

• Desktop and Laptop PCs
• Workstations and Servers
• High-performance Computing
• Data Storage and Network Systems
• Consumer Electronics

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the PI3EQX12902AZLEX is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the rigors of real-world applications.

For engineers and designers looking for a solution to maintain signal integrity across high-speed data links, the PI3EQX12902AZLEX from Diodes Incorporated is an excellent choice that combines performance, efficiency, and flexibility.
