The PI3USB102EZLE+DMX from Diodes Incorporated is a cutting-edge USB 2.0 high-speed (480Mbps) switch designed for multiplexing/demultiplexing USB signals. This switch is an ideal solution for applications requiring the routing of high-speed differential signals with minimal signal distortion and attenuation.

Key Features

• USB 2.0 Compatibility: Fully compliant with USB 2.0 high-speed (480Mbps) and backward compatible with full-speed (12Mbps) and low-speed (1.5Mbps) operation.
• Low Power Consumption: Designed for power efficiency, the PI3USB102EZLE+DMX consumes minimal power, making it suitable for battery-powered devices.
• High Bandwidth: Offers a wide bandwidth to ensure signal integrity, which is critical for maintaining high-speed data transfers without compromise.
• Enhanced ESD Protection: Integrated ESD protection circuitry shields the device from electrostatic discharges, enhancing its durability and reliability in harsh environments.

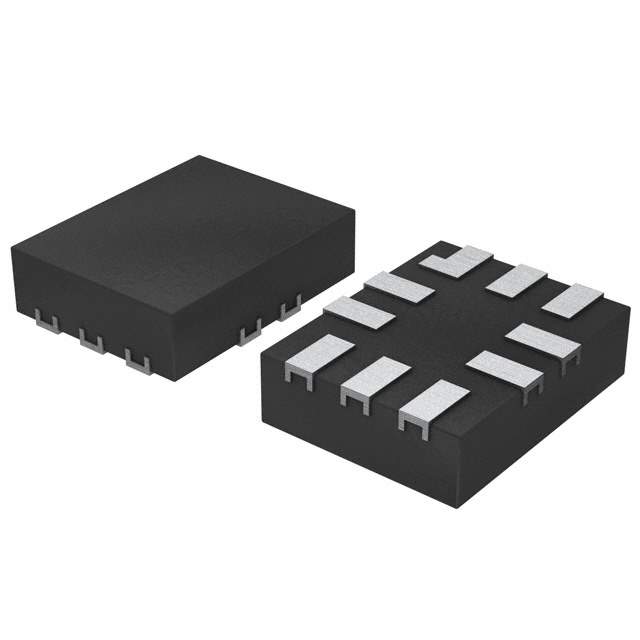

• Compact Packaging: Available in a space-saving package, the switch is perfect for applications where board space is at a premium.

Applications

The PI3USB102EZLE+DMX is versatile and can be used in a variety of applications, including:

• USB port isolation and switching in desktop and laptop computers.
• Peripheral device connections such as printers, scanners, and external hard drives.
• Consumer electronics that require USB connectivity, such as smart TVs and media players.
• Mobile and handheld devices where USB port conservation is necessary.
• Industrial equipment that leverages USB interfaces for communication and data transfer.

Technical Specifications

The PI3USB102EZLE+DMX offers a robust set of technical specifications that ensure seamless integration and operation within USB systems:

• Single 3.3V Power Supply
• Low On-Capacitance: 6pF (typical)
• Low On-Resistance: 4Ω (typical)
• High Off-Isolation: -40dB at 240MHz
• Crosstalk: -35dB at 240MHz
• Operating Temperature Range: -40°C to 85°C

With its robust design and advanced features, the PI3USB102EZLE+DMX from Diodes Incorporated is an excellent choice for any application requiring reliable USB 2.0 switching capabilities.
