Diodes Incorporated PI3USB102ZMEX - USB 2.0 1:2 Mux/Demux Switch

The PI3USB102ZMEX from Diodes Incorporated is a high-performance, 1:2 multiplexer/demultiplexer switch designed for USB 2.0 applications. This versatile component is a critical piece for designers looking to manage USB 2.0 signals in their electronic devices, offering a seamless and efficient way to route high-speed data lines.

Constructed with the latest technology, the PI3USB102ZMEX supports bidirectional switching between two USB hosts or peripherals. This allows for the sharing of a single USB device over two hosts or vice versa, which is particularly useful in reducing the number of USB ports needed and simplifying PCB layout in complex systems.

One of the key features of the PI3USB102ZMEX is its low on-capacitance (C<sub>ON) and low on-resistance (R<sub>ON), ensuring minimal signal distortion and attenuation for a clean, reliable data transfer. This makes it an ideal choice for maintaining signal integrity in high-speed USB 2.0 connections, which can operate at data rates of up to 480 Mbps.

The switch is also designed for low power consumption, which helps in extending battery life in portable applications. It operates over a wide supply voltage range from 2.3V to 3.6V, allowing for flexibility in various system designs. Its ESD protection exceeds ±8kV contact discharge, as per the IEC 61000-4-2 standard, which provides robust protection for sensitive electronics against electrostatic discharge during handling and operation.

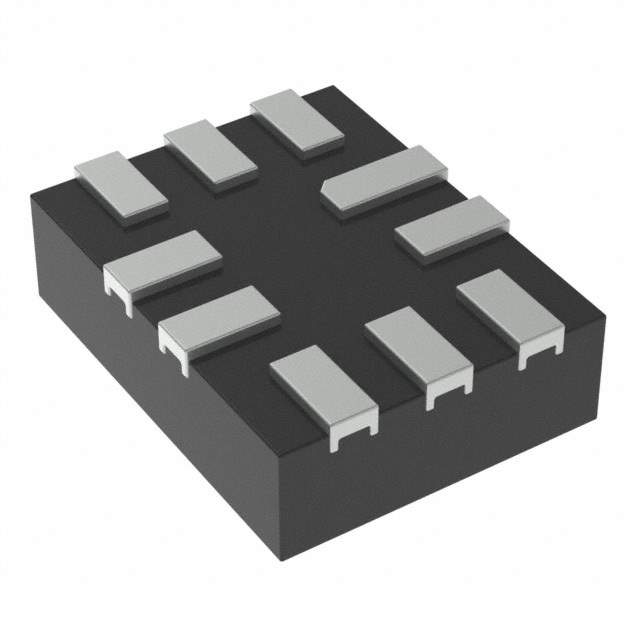

Encased in a compact, space-saving U-DFN3030-10 (Type C) package, the PI3USB102ZMEX is suitable for mobile and handheld devices where PCB real estate is at a premium. Furthermore, it is fully compliant with the USB 2.0 standard, ensuring compatibility with existing and future USB devices without the need for additional firmware or drivers.

In summary, the Diodes Incorporated PI3USB102ZMEX is an essential component for any designer working with USB 2.0 interfaces. Its high-speed performance, low power consumption, and compact form factor make it a versatile and reliable choice for multiplexing USB signals in a wide range of electronic products.
