Diodes Incorporated PI7C8150BNDI Product Overview

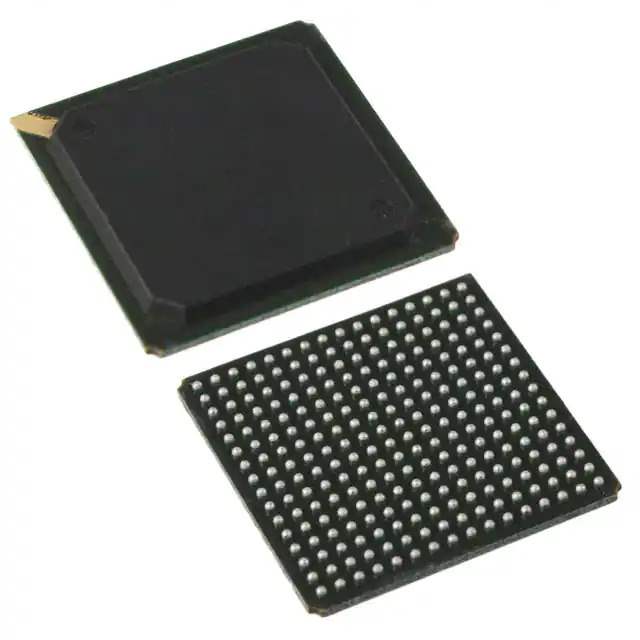

The PI7C8150BNDI is a high-performance, versatile PCI-to-PCI bridge chip from Diodes Incorporated, designed to expand system bus capability and increase available bandwidth for data-intensive applications. This product is part of Diodes Incorporated's extensive line of interface devices, which are known for their reliability and innovation.

Key Features

• PCI Bus Compliant: The device is fully compliant with PCI Local Bus Specification, Revision 2.2, ensuring compatibility with a wide range of systems.
• Dual PCI Bus Interface: It features a primary and secondary PCI bus interface, enabling the connection of multiple devices on either side of the bridge.
• High Bandwidth: With support for 66 MHz operation on both buses, the PI7C8150BNDI allows for high-speed data transfers, making it ideal for performance-critical applications.
• Low Power Consumption: The device is designed for low power operation, which helps in reducing overall system power consumption.
• Versatile Bus Operations: It supports 32-bit data bus width and is capable of 5V tolerant signaling, adding to its versatility in different system environments.

Applications

The PI7C8150BNDI is suitable for a variety of applications, particularly where expansion of PCI bus connections is required. It is commonly used in:

• Embedded Systems
• Networking Equipment
• Communication Devices
• Server and Workstation Bridges
• Industrial Control Systems

Quality and Support

Diodes Incorporated is committed to providing high-quality products and support. The PI7C8150BNDI is manufactured to meet the highest industry standards for performance and reliability. Customers can expect comprehensive technical support and customer service when choosing Diodes Incorporated for their interface device needs.

Note: For detailed technical specifications, application notes, and support documentation, please refer to the official Diodes Incorporated product datasheet for the PI7C8150BNDI.
