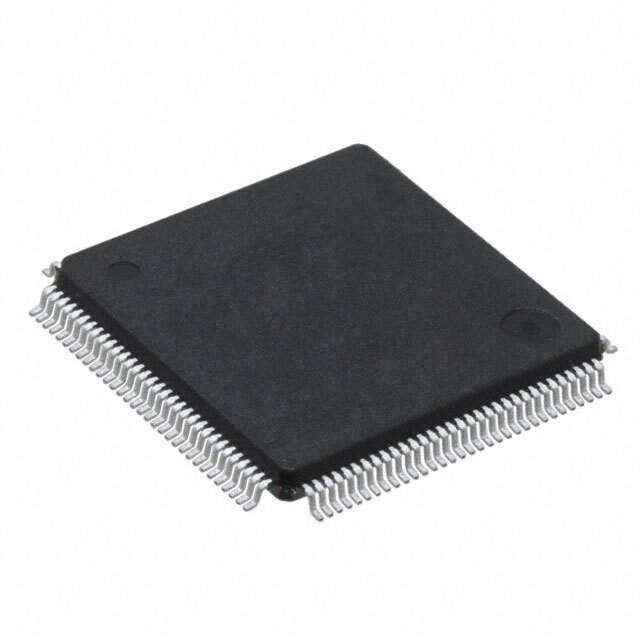

PI7C9X7954BFDEX - PCIe Packet Switch

The PI7C9X7954BFDEX is a highly versatile PCIe packet switch designed by Diodes Incorporated, optimized for enabling high-speed interconnectivity within complex electronic systems. This advanced switch is part of the PI7C9X79xx series, known for its reliability and performance in managing PCIe data traffic across multiple devices.

Key Features:

• PCI Express Base Specification: Compliant with PCI Express Base Specification Revision 3.0, this switch supports data transfer rates of up to 8 GT/s per lane, ensuring compatibility with high-performance PCIe devices.
• Flexible Port Configuration: The PI7C9X7954BFDEX offers a configurable port design, allowing for a variety of topology options to suit different system requirements, including fan-out and peer-to-peer configurations.
• Advanced Power Management: With support for Active State Power Management (ASPM) and L1 sub-states, the switch is engineered for efficient power usage, reducing overall system power consumption.
• Quality of Service (QoS): The device includes QoS features that prioritize traffic to ensure smooth operation of latency-sensitive applications and maintain system stability.
• High Port Density: The switch provides multiple downstream ports, enabling the connection of a large number of devices while maintaining a compact footprint.

Applications:

The PI7C9X7954BFDEX is ideal for a wide range of applications that require high-speed data transfer and reliable connectivity. These include:

• Data centers and servers
• Storage systems
• Networking equipment
• Embedded systems
• Consumer electronics

Technical Specifications:

With its robust feature set, the PI7C9X7954BFDEX from Diodes Incorporated is a top choice for designers looking to build systems with advanced PCIe capabilities. The switch's high port density, power efficiency, and support for the latest PCIe standards make it an essential component for modern, high-performance computing and communication systems.
